Q60VR3LAF1400QPMA Banner Proximity Sensors

Q60VR3LAF1400QPMA on Powermatic Associates
Banner
  • Q60VR3LAF1400QPMA
  • Q60VR3LAF1400QPMA

Part#:Q60VR3LAF1400QPMA

Alt. Part#:80833

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

Q60 Series: Adjust-Field Laser (Cls 1) Univ Volt; Range: 200-1400 mm; Input: 12-250 V dc or 24-250 V ac; Output: Electromechanical Relay (SPST); 150 mm (6 in) 4-pin Micro Pigtail QD; N.O.

Product Details

  • Weight
    181.4368 g
  • Country Of Origin
    US
  • Feature: Hazardous Area
    No
  • IO Link
    No
  • Feature: Encapsulated
    No
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • DeviceNet
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Timing (Hold/Delay)
    Yes
  • Indicator
    LEDs
  • Opposed Mode Emitter/Receiver
    N/A
  • Barrel Diameter (mm)
    N/A
  • Adjustments
    Screw Adjustment
  • IP Rating
    IP67
  • Lens Material
    Acrylic
  • NEMA Rating
    NEMA 6
  • Number of Pins
    4
  • Delay at Power-up (ms)
    1000
  • Operation
    Light/Dark Operate
  • Repeatability (µs)
    500
  • Special Feature: Water Detection
    No
  • Special Feature: Remote Teach
    No
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    15
  • Max Op. Temp. (°C)
    45
  • Outputs
    SPDT e/m Relay
  • Min Op. Temp. (°C)
    -10
  • Max Sensing Distance (mm)
    1400
  • Connection
    Pigtail PUR QD
  • Quick Disconnect Type
    1/2 in. (Micro)
  • Power Supply/Supply Voltage
    12-250 V dc or 24-250 V ac
  • Power
    AC/DC Universal
  • Sensing Mode (Detailed)
    Background Suppression (Adjustable)
  • Housing Style
    Rectangular
  • Small Visible Spot
    Laser
  • Sensing Mode (General)
    Proximity
  • Sensing Beam
    Visible Red Laser
  • Laser Classification
    Class 1
  • Primary Housing Material
    Thermoplastic
  • Input/Output
    E/M Relay

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q60VR3LAF1400QPMA on Powermatic Associates is $524.00. Order now.

About the product

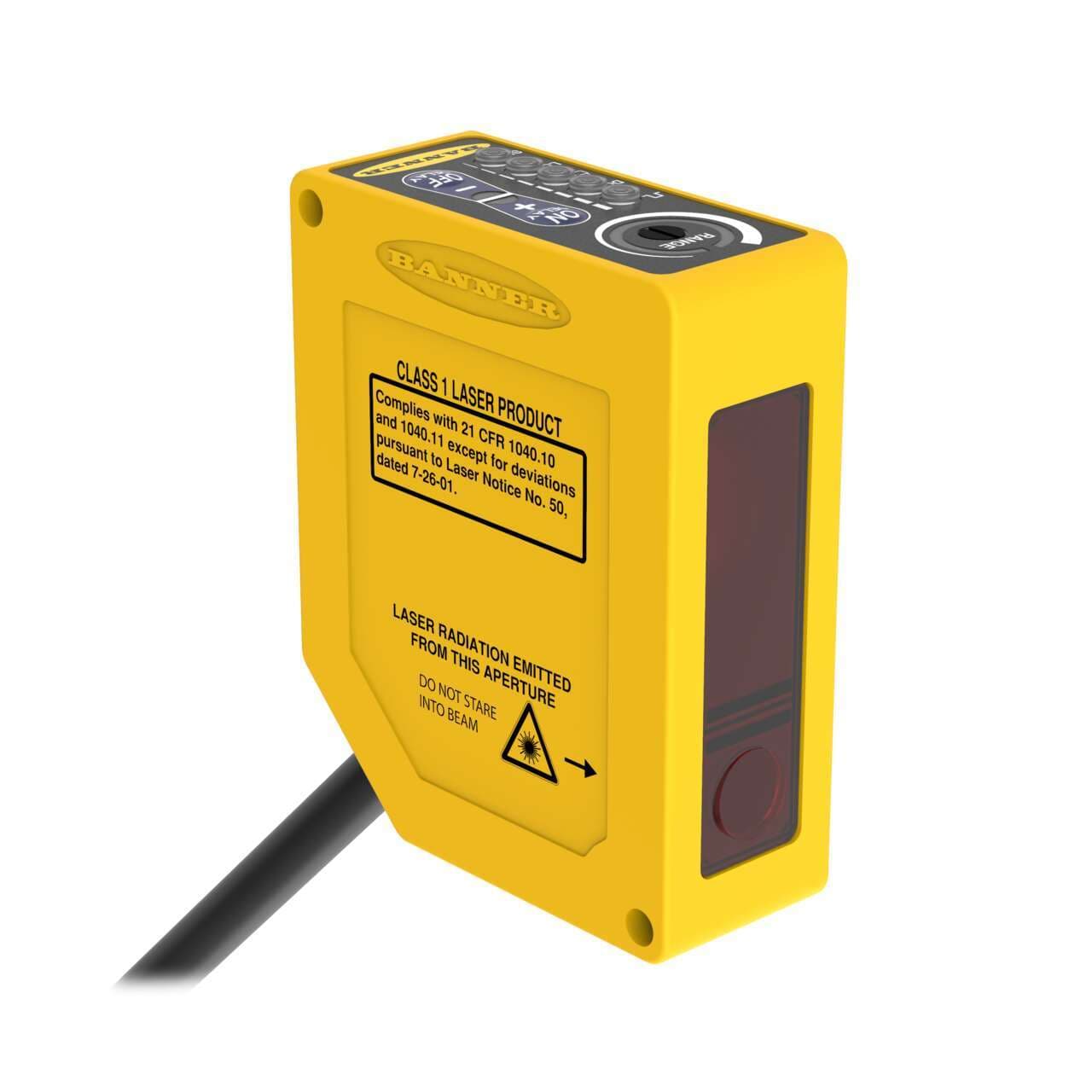

Banner Engineering Q60VR3LAF1400QPMA is an adjustable-field Class 1 laser photo-electric sensor designed for precise detection tasks. It operates within an ambient air temperature range of -10 to +45°C and features a background suppression system with screw adjustment for fine-tuning. This sensor is pre-wired with a 6" / 150mm PUR cable that terminates with a 5-pin 7/8"-16 mini connector, facilitating easy installation. It supports a supply voltage range of 24Vac-250Vac (with 200Vac, 220Vac, and 240Vac nominal) and 12Vdc-250Vdc (with 24Vdc, 48Vdc, and 120Vdc nominal), making it versatile for various power setups. The Q60LAF series sensor boasts an IP67 NEMA 6 degree of protection, ensuring durability in harsh environments. Its thermoplastic housing and acrylic lens, coupled with a polyurethane (PUR) cable sheath, contribute to its robust design. With a rectangular shape, the sensor measures 75mm in height, 25mm in width, and 60mm in depth. It offers a sensing distance of 20cm to 1.4m and emits a visible class 1 red laser for detection. The operating modes include Light-ON and Dark-ON, and it features 1 x digital output (SPDT relay contact) with a response time of 15ms / 0.015 s.
