Q60VR3AF2000Q1-70028 Banner Proximity Sensors

Q60VR3AF2000Q1-70028 on Powermatic Associates
Banner
  • Q60VR3AF2000Q1-70028
  • Q60VR3AF2000Q1-70028

Part#:Q60VR3AF2000Q1-70028

Alt. Part#:70028

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

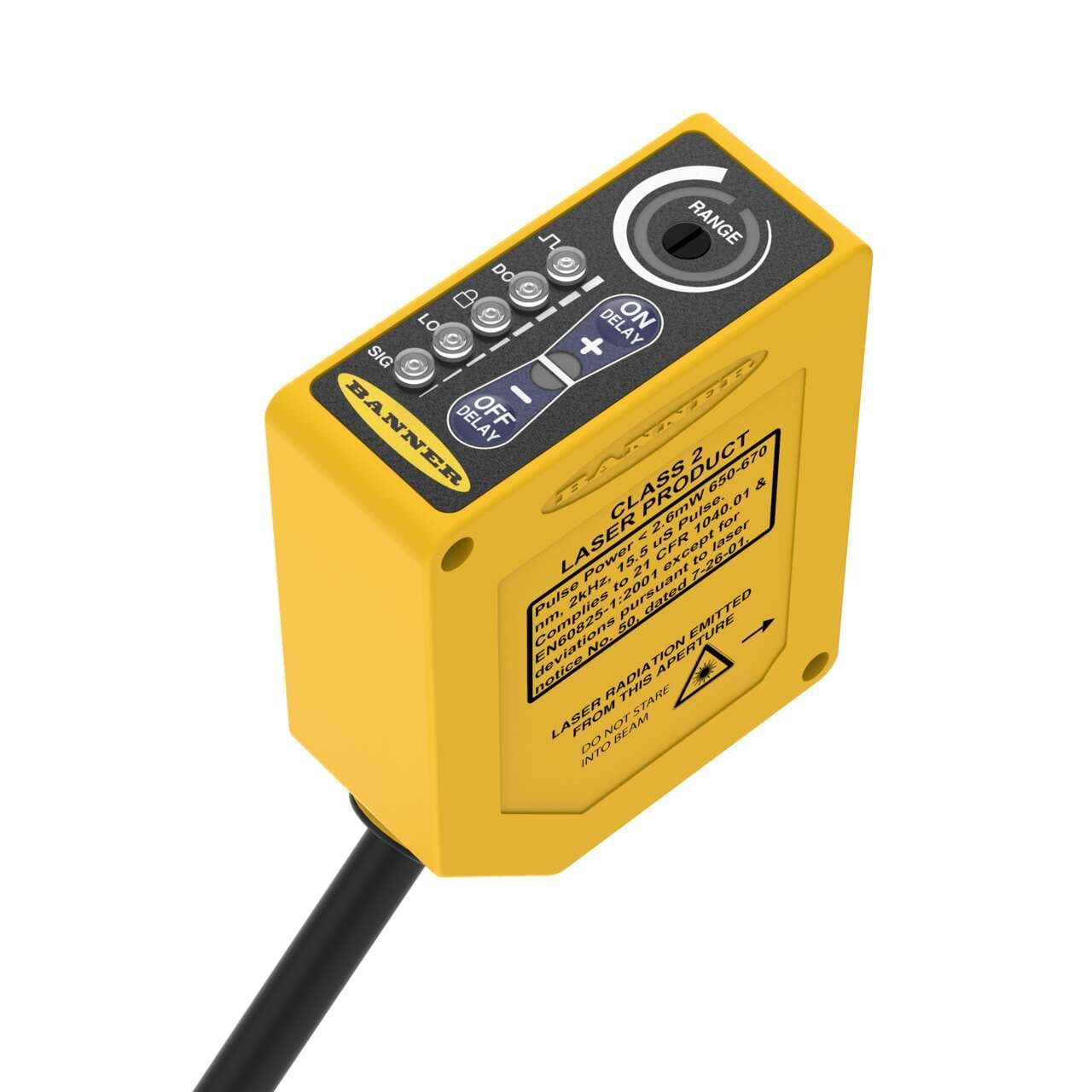

Q60 VR3 AF2000Q1-70028 DARK LENS FIXED FIELD

Product Details

  • Weight
    1260.98576 g
  • Country Of Origin
    US

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q60VR3AF2000Q1-70028 on Powermatic Associates is $325.00. Order now.

About the product

Banner Engineering Q60VR3AF2000Q1-70028 is an adjustable-field photo-electric sensor designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature range of -20 to +55°C and features a background suppression system with screw adjustment for fine-tuning. It comes pre-equipped with a 4-pin 1/2" micro connector for easy installation and is compatible with supply voltages of 24Vac-250Vac (200Vac / 220Vac / 240Vac nominal) and 12Vdc-250Vdc (24Vdc / 48Vdc / 120Vdc nominal), accommodating a wide range of power supplies. The Q60AF series sensor boasts a robust IP67 NEMA 6 rated thermoplastic housing with an acrylic lens, ensuring durability in harsh environments. Its rectangular shape measures 75 mm in height, 25 mm in width, and 60 mm in depth. With a sensing distance of 2m and infrared (IR) light color, it offers versatile detection capabilities. The sensor supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (SPST relay contact) with a response time of 15ms / 0.015 s, facilitating rapid signal processing.

Q60VR3AF2000Q1-70028 Related Documents

67003.pdf
