Q60VR3LAF2000 Banner Proximity Sensors

Q60VR3LAF2000 on Powermatic Associates
Banner
  • Q60VR3LAF2000
  • Q60VR3LAF2000

Part#:Q60VR3LAF2000

Alt. Part#:71636

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

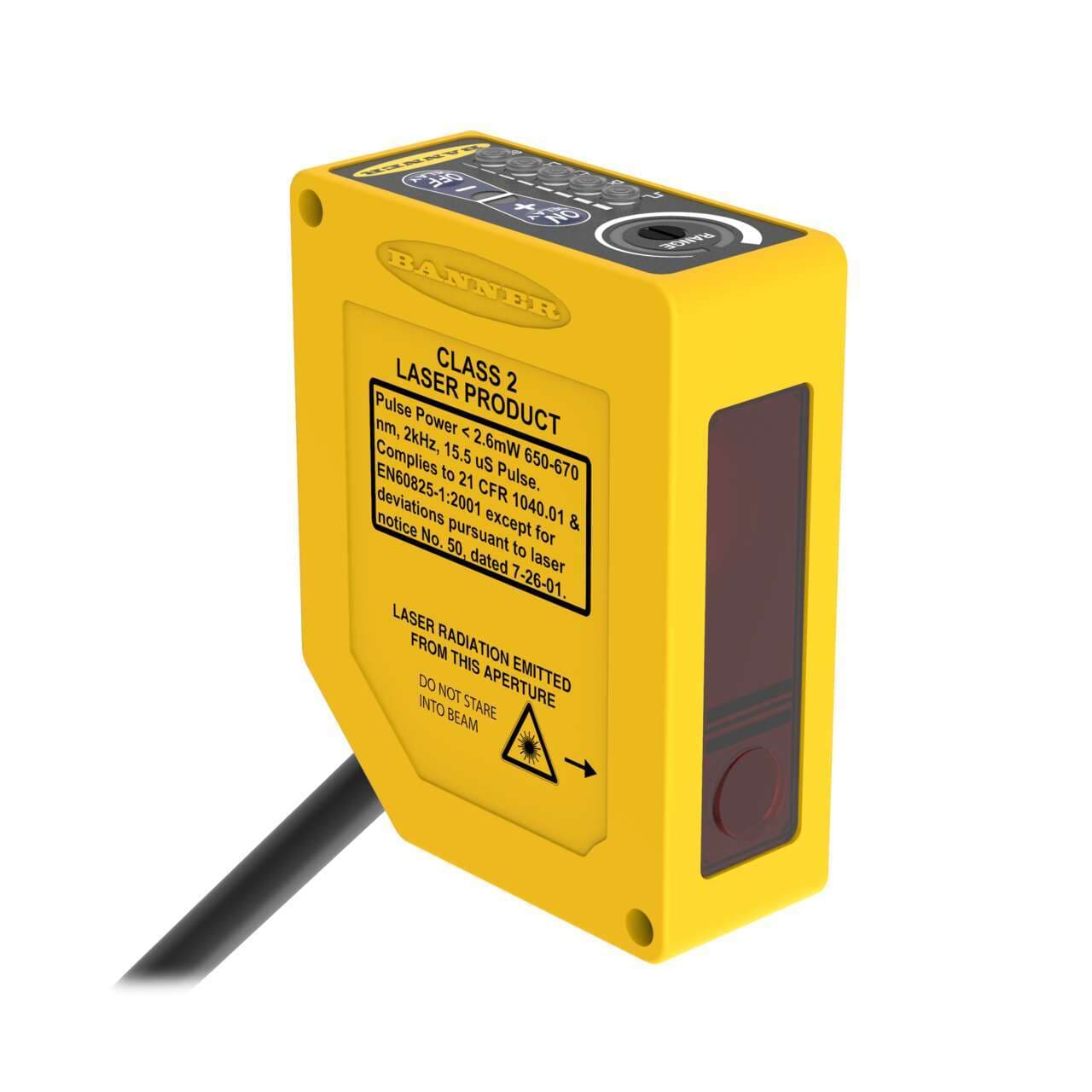

Q60 Series: Adjust-Field Laser (Cls 2) Univ Volt; Range: 200-2000 mm; Input: 12-250 V dc or 24-250 V ac; Output: ELectromechanical Relay (SPDT); 2 m (6.5 ft) Cable

Product Details

  • Weight
    204.1164 g
  • Country Of Origin
    US
  • IO Link
    No
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Feature: Chemical Resistant
    No
  • Barrel Diameter (mm)
    N/A
  • Feature: Timing (Hold/Delay)
    Yes
  • Indicator
    LEDs
  • Adjustments
    Screw Adjustment
  • Delay at Power-up (ms)
    1000
  • NEMA Rating
    NEMA 6
  • IP Rating
    IP67
  • Special Feature: Intrinsically Safe
    No
  • Special Feature: Water Detection
    No
  • Max Op. Temp. (°C)
    45
  • Operation
    Light/Dark Operate
  • Connection
    Cable
  • Special Feature: Remote Teach
    No
  • Output response time (ms)
    15
  • Power Supply/Supply Voltage
    12-250 V dc or 24-250 V ac
  • Outputs
    SPDT e/m Relay
  • Max Sensing Distance (mm)
    2000
  • Laser Classification
    Class 2
  • Primary Housing Material
    Thermoplastic
  • Sensing Beam
    Visible Red Laser
  • Sensing Mode (General)
    Proximity
  • Power
    AC/DC Universal
  • Sensing Mode (Detailed)
    Background Suppression (Adjustable)
  • DeviceNet
    No
  • Feature: Audible
    No
  • Lens Material
    Acrylic
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Number of Pins
    5
  • Repeatability (µs)
    500
  • Quick Disconnect Type
    No QD
  • Min Op. Temp. (°C)
    -10
  • Input/Output
    E/M Relay
  • Housing Style
    Rectangular
  • Small Visible Spot
    Laser
  • Cable Length (m)
    2
  • Supply voltage (AC)
    24Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
  • Shape
    Rectangular
  • Operating mode
    Light-ON Dark-ON
  • Main function
    Sensor (Photo-electric)
  • Product series / family name
    Q series
  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    12Vdc-250Vdc (24Vdc / 48Vdc / 120Vdc nom.)
  • Light Color
    Visible class 2 red Laser
  • Digital outputs
    1 x digital output (SPDT contact type)
  • Degree of protection
    IP67 NEMA 6
  • Sub-range name
    Q60LAF
  • Design
    background suppression system
  • Response time
    15ms / 0.015 s
  • Order code / Manufacturer SKU
    71636
  • Functions
    Adjustable-field class 2 Laser photo-electric sensor green LED (power ON) yellow LED (output state) screw adjustment
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Compliant with standard(s)
    cURus CE
  • Sensing distance
    20cm...2m
  • Material
    thermoplastic housing Acrylic lns.
  • Ambient air temperature for operation
    -10...+45 °C
  • Net Height (mm)
    75 mm
  • Net Depth (mm)
    60 mm
  • Net Width (mm)
    25 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q60VR3LAF2000 on Powermatic Associates is $483.00. Order now.

About the product

Banner Engineering Q60VR3LAF2000 is an adjustable-field Class 2 laser photo-electric sensor designed for precise detection tasks. It operates within an ambient air temperature range of -10 to +45°C and features a background suppression system with screw adjustment for fine-tuning. This sensor is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads, facilitating easy installation. It supports a wide supply voltage range, accepting 24Vac-250Vac (with 200Vac, 220Vac, and 240Vac as nominal values) and 12Vdc-250Vdc (with 24Vdc, 48Vdc, and 120Vdc as nominal values), making it versatile for various power setups. The Q60LAF series sensor boasts an IP67 NEMA 6 degree of protection, ensuring durability in harsh environments. Its thermoplastic housing and acrylic lens are designed to withstand demanding conditions, while its rectangular shape and dimensions (75mm height, 25mm width, 60mm depth) make it compact and easy to integrate into a wide range of applications. The sensing distance ranges from 20cm to 2m, and it emits a visible class 2 red laser for detection. It offers Light-ON and Dark-ON operating modes, along with a single digital output (SPDT relay contact) and a quick response time of 15ms / 0.015s, ensuring timely and accurate sensor responses.
