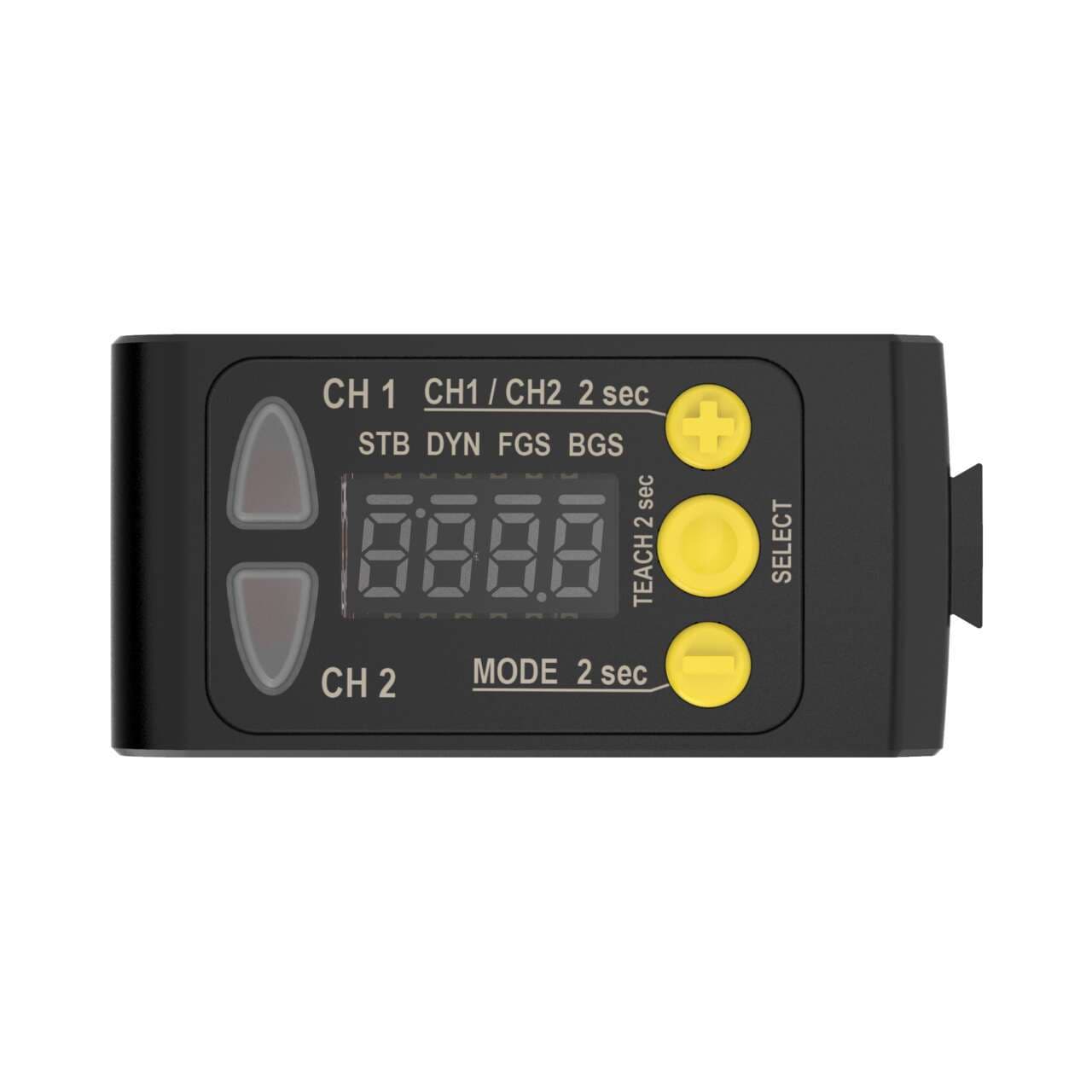

Q5XKLAF5000-Q8 Banner Proximity Sensors

Product Details

• Weight
  130.180904 g
• Country Of Origin
  US
• SSI
  No
• Feature: Chemical Resistant
  No
• Discrete Output Hysteresis (mm)
  Automatically adjusted
• 1-wire Serial Interface
  No
• Profibus
  No
• RS-485
  No
• RS-422
  No
• RS-232
  No
• Wireless
  No
• IO Link
  Yes
• PROFINET
  No
• Common Ethernet Protocol
  No
• Feature: Pump-in/ Pump-out
  Yes
• Feature: Clear Object Detection
  Yes
• Feature: Remote Teach
  Yes
• Feature: Timing (Hold/Delay)
  Yes
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Power/Current Consumption (exclusive of load)
  < 1 W
Laser Control
Yes
Max Ambient Light (Lux)
up to 5000 lux at 1000 mm and up to 2000 lux at 2000 mm
Spot Size (@ Reference Distance)
7.0 mm x 11.0 mm @ 5000 mm
Minimum Response Time (ms)
2
Minimum Window Size (mm)
1
Warm-up Time (minutes)
10
Window Material
PMMA
Max Op. Relative Humidity Non-Condensing (%)
95 at 50°C
Output Protection
Protected against continuous overload and short circuit
Max Operating Temperature (°C)
50
IP Rating
IP67
Min Operating Temperature (°C)
-10
Storage Temperature (°C)
-25 to 70
Max Discrete (Switched) Output (mA)
50
Output Saturation Voltage PNP Outputs
< 2.5 V @ 50 mA
Discrete (Switched) Outputs
2 NPN/PNP Configurable
Vibration
MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Number of Pins
4
Output Saturation Voltage NPN Outputs
< 2.5 V @ 50 mA
Mechanical Shock
MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
Temperature Effect (mm/°C)
< +/- 0.5 mm/°C < 3000 mm,< +/- 0.75 mm/°C at < 5000 mm
Adjustments
Push Button; Remote Teach
Sensing Beam Wavelength (nm)
650
Delay at Power-up (ms)
2500
Power Supply
10-30 V dc
Minimum Sensing Distance (mm)
50
Max Sensing Distance (mm)
5000
Analog Resolution/Discrete Repeatability
95mm to 3000mm: +/-1.0mm; 3m to 5m: +/- 1.5mm
Laser Classification
Class 2
Indicator
Display; LED(s)
Quick Disconnect Type
M12 (Euro)
Connection
Integral QD
Input/Output
Discrete
Primary Housing Material
ABS
Sensing Mode (Detailed)
Background/Foreground Suppression
PFM Output
Yes
Sensing Mode (General)
Proximity
Sensing Beam
Visible Red Laser
Device Type
Sensor
Housing Style
Rectangular
Max Measurement Range
>1 m - <=20 m
PC Configurable
No
Power
DC
