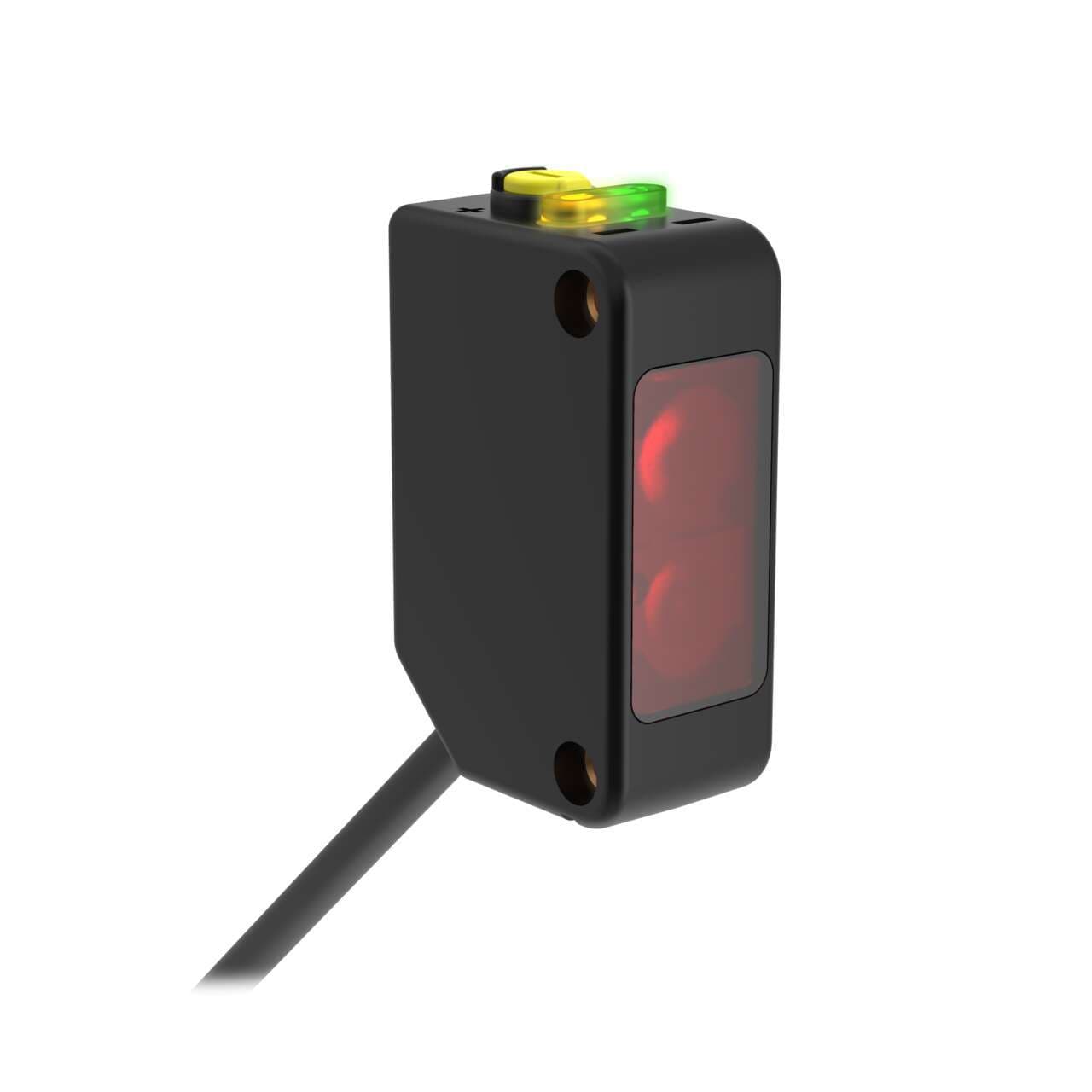

Q20PLVQPMA Banner Proximity Sensors

Name: Q20PLVQPMA
Brand: Banner

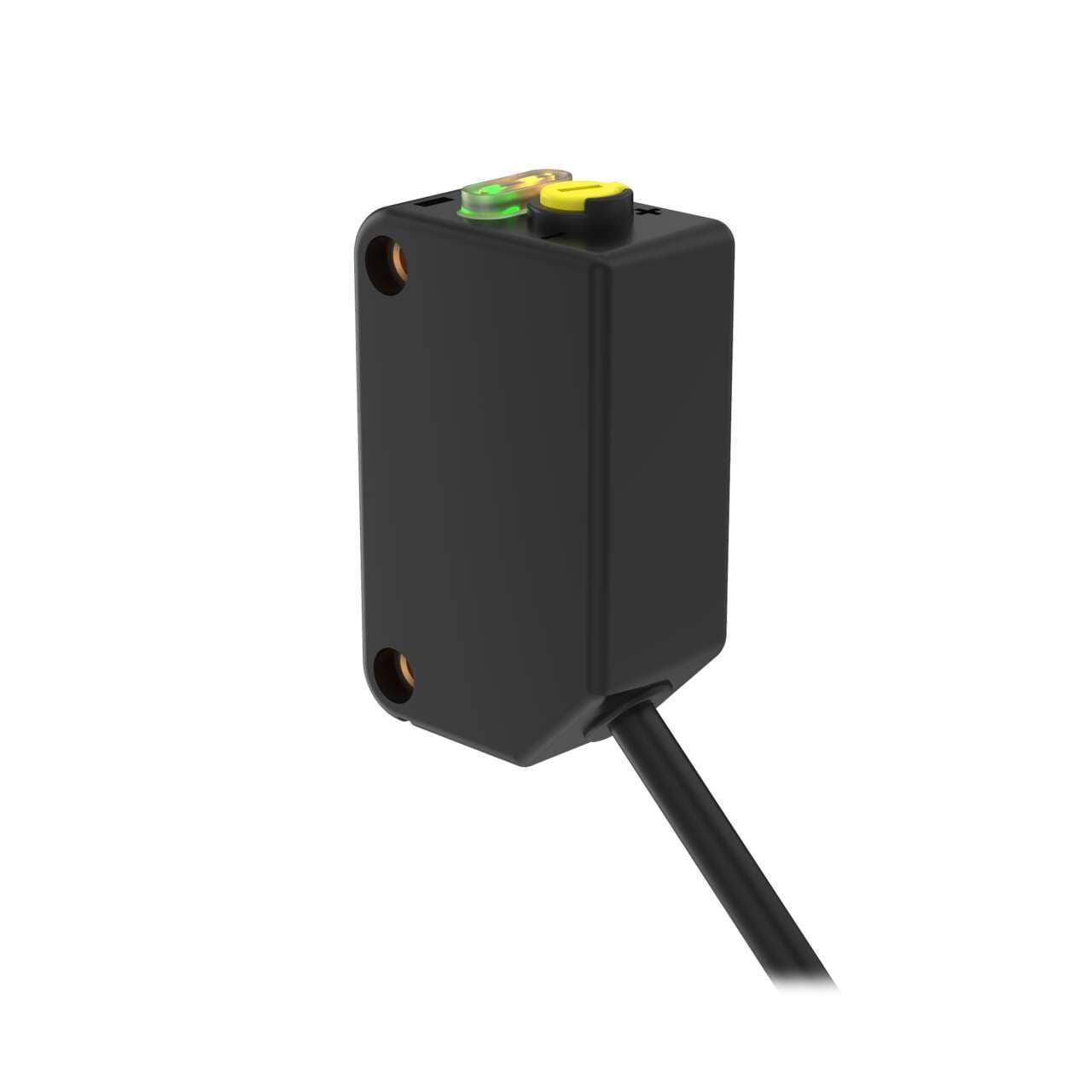

Banner Q20PLVQPMA WORLD-BEAM Q20 Series: Retro; Range: 6 m; Input 10-30 V dc; Output: Complementary Solid-State PNP; 150 mm (6 in) M12 PUR Pigtail QD

Part#:Q20PLVQPMA

Manufacturer:Banner

Alt. Part#:78173

Product Lifecycle:Active

Get a quick Quote!

WORLD-BEAM Q20 Series: Retro; Range: 6 m; Input 10-30 V dc; Output: Complementary Solid-State PNP; 150 mm (6 in) M12 PUR Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q20PLVQPMA Banner price in the box on the right side or send a quick quote.

Product Details

Weight
22.6796 g
Country Of Origin
MX
IO Link
No
Feature: Timing (Hold/Delay)
No
Feature: Audible
No
Feature: Hazardous Area
No
DeviceNet
No
Max Op. Relative Humidity [%]
95% @ 50°C
Number of Pins
4
Output response time (ms)
0.8
Special Feature: Remote Teach
No
Min Op. Temp. (°C)
-20
Sensing Beam
Visible Red LED
EPLAN Cabinet Installable
No
Feature: Chemical Resistant
No
Feature: Encapsulated
No
Opposed Mode Emitter/Receiver
N/A
Indicator
LEDs
Adjustments
Potentiometer
Barrel Diameter (mm)
N/A

Lens Material

Acrylic

NEMA Rating

NEMA 6

IP Rating

IP67

Repeatability (µs)

155

Delay at Power-up (ms)

100

Special Feature: Water Detection

Sensing Beam Wavelength

645

Max Op. Temp. (°C)

Special Feature: Intrinsically Safe

Connection

Pigtail PUR QD

Operation

Light/Dark Operate

Quick Disconnect Type

M12 (Euro)

Power Supply/Supply Voltage

10-30 V dc

Outputs

PNP

Max Sensing Distance (mm)

6000

Sensing Mode (Detailed)

Non-Polarized

Housing Style

Rectangular

Sensing Mode (General)

Retroreflective

Primary Housing Material

Thermoplastic

Cable Length (m)

0.15

Input/Output

Discrete

Power

Sub-range name

Q20 series

Wavelength

645 nm

Response time

0.8ms / 0.0008 s

Main function

Sensor (Photo-electric)

Sensing distance

Design

retro-reflective mode

Degree of protection

IP67 NEMA 6

Material

thermoplastic housing PUR connector PUR pigtail

Functions

Photo-electric sensor green LED (power ON) amber LED (black (LO) wire conducting) potentiometer adjustment

Digital outputs

1 x digital output (PNP transistor)

Order code / Manufacturer SKU

78173

Primary brand

Banner Engineering

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Connection type

Pre-wired with 6" / 150mm PUR pigtail terminated with 4-pin Euro-style M12 connector

Ambient air temperature for operation

-20...+60 °C

Product series / family name

WORLD-BEAM series

Light Color

Visible red

Shape

Rectangular

Operating mode

Light-ON Dark-ON

Compliant with standard(s)

cURus CE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Q20PLVQPMA Description

Banner Engineering Q20PLVQPMA is a photo-electric sensor designed for a variety of applications requiring retro-reflective mode with potentiometer adjustment. It operates within an ambient air temperature range of -20 to +60 degrees Celsius and is equipped with a pre-wired 6-inch (150mm) PUR cable that terminates with a 4-pin Euro-style M12 connector. This sensor falls under the Q20 series and offers a degree of protection rated at IP67 NEMA 6, ensuring its durability in challenging environments. It requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. The rectangular-shaped sensor features a thermoplastic housing, a polyurethane (PUR) connector, and a cable sheath, designed for robustness. It has a sensing distance of up to 6 meters and utilizes visible red light with a wavelength of 645 nm. The operating modes include Light-ON and Dark-ON, and it has a single digital output (PNP transistor) with a rapid response time of 0.8ms (0.0008 seconds).
