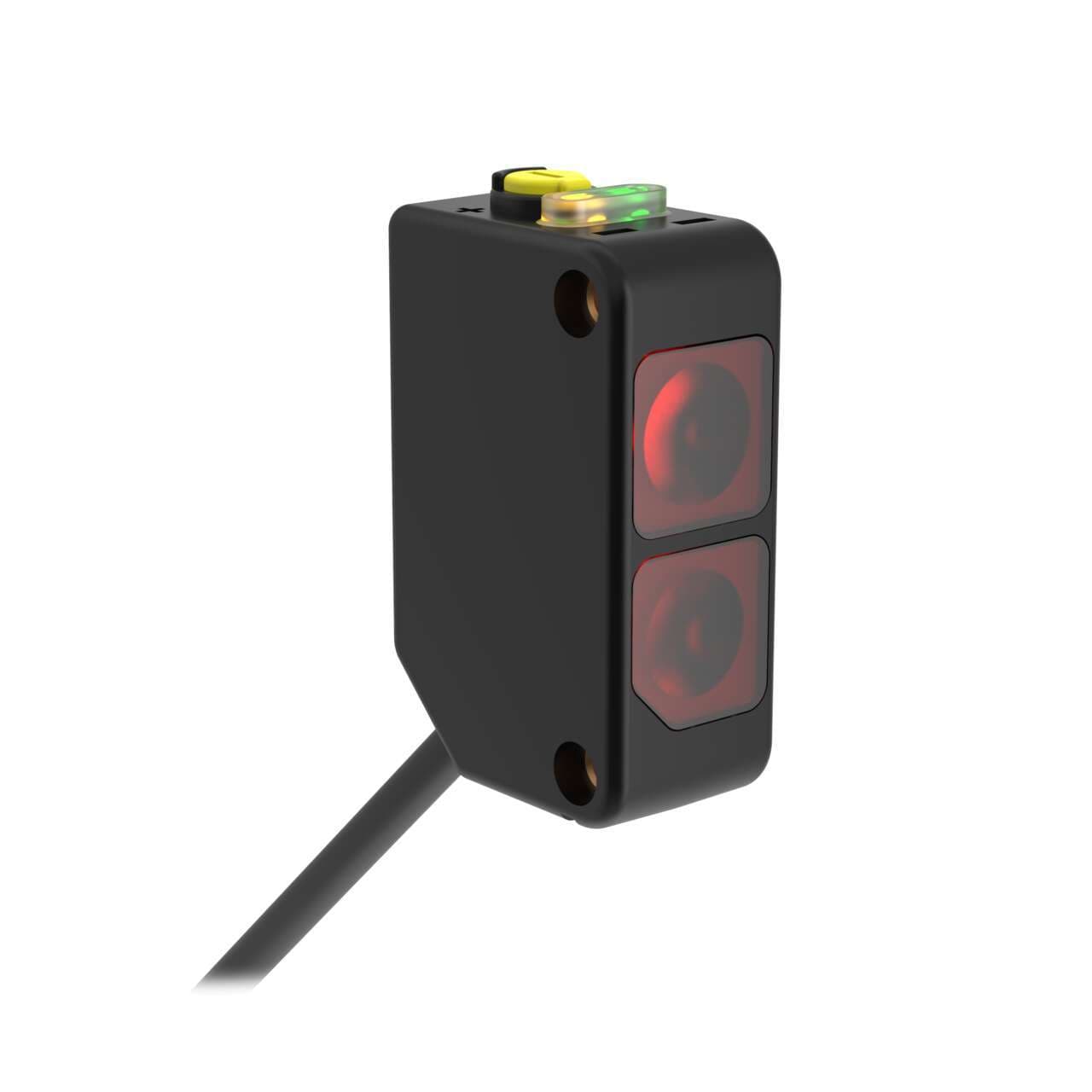

Q20PDXL Banner Proximity Sensors
Part#:Q20PDXL
Alt. Part#:78151
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM Q20 Series: Long Range Diffuse (IR); Range: 1500 mm; Input 10-30 V dc; Output: Complementary Solid-State PNP; 2 m (6.5 ft) Cable
Product Details
- Weight 45.3592 g
- Country Of Origin MX
- EPLAN Cabinet Installable No
- IO Link No
- Feature: Hazardous Area No
- Feature: Encapsulated No
- Feature: Timing (Hold/Delay) No
- Opposed Mode Emitter/Receiver N/A
- Indicator LEDs
- DeviceNet No
- Feature: Chemical Resistant No
- Feature: Audible No
- Adjustments Potentiometer
- Barrel Diameter (mm) N/A
- Lens Material Acrylic
- Max Op. Relative Humidity [%] 95% @ 50°C
- NEMA Rating NEMA 6
- IP Rating IP67
- Delay at Power-up (ms) 100
- Number of Pins 4
- Repeatability (µs) 155
- Special Feature: Water Detection No
- Special Feature: Remote Teach No
- Output response time (ms) 0.8
- Special Feature: Intrinsically Safe No
- Max Op. Temp. (°C) 60
- Operation Light/Dark Operate
- Min Op. Temp. (°C) -20
- Quick Disconnect Type No QD
- Connection Cable
- Power Supply/Supply Voltage 10-30 V dc
- Outputs PNP
- Input/Output Discrete
- Max Sensing Distance (mm) 1500
- Sensing Mode (Detailed) Diffuse
- Primary Housing Material Thermoplastic
- Sensing Mode (General) Proximity
- Sensing Beam Infrared LED
- Housing Style Rectangular
- Power DC
- Cable Length (m) 2
- Main function Sensor (Photo-electric)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Rectangular
- Sub-range name Q20 series
- Primary brand Banner Engineering
- Sensing distance 1.5m
- Wavelength 850 nm
- Digital outputs 1 x digital output (PNP transistor)
- Product series / family name WORLD-BEAM series
- Design diffuse mode
- Operating mode Light-ON Dark-ON
- Material thermoplastic housing
- Functions Long-range photo-electric sensor green LED (power ON) amber LED (black (LO) wire conducting) potentiometer adjustment
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Degree of protection IP67 NEMA 6
- Light Color Infrared (IR)
- Compliant with standard(s) cURus CE
- Response time 0.8ms / 0.0008 s
- Order code / Manufacturer SKU 78151
- Ambient air temperature for operation -20...+60 °C
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q20PDXL on Powermatic Associates is $100.00. Order now.
About the product
Banner Engineering Q20PDXL is a long-range photo-electric sensor designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature range of -20 to +60°C and features a diffuse mode with potentiometer adjustment for fine-tuning. It comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads, ensuring easy installation. Part of the Q20 series, it boasts a degree of protection rated at IP67 NEMA 6, making it suitable for challenging environments. The Q20PDXL operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc and 24Vdc. Its rectangular shape is constructed from a durable thermoplastic housing, designed to withstand rigorous use. With a sensing distance of up to 1.5m and utilizing infrared light with a wavelength of 850 nm, it offers versatile detection capabilities. The sensor supports both Light-ON and Dark-ON operating modes for increased application flexibility. It features a single digital output (PNP transistor) and boasts a rapid response time of 0.8ms / 0.0008 s, facilitating quick and efficient operation.
