Q20PFF50Q5 Banner Proximity Sensors

Name: Q20PFF50Q5
Brand: Banner
Price: 109 USD
Availability: BackOrder

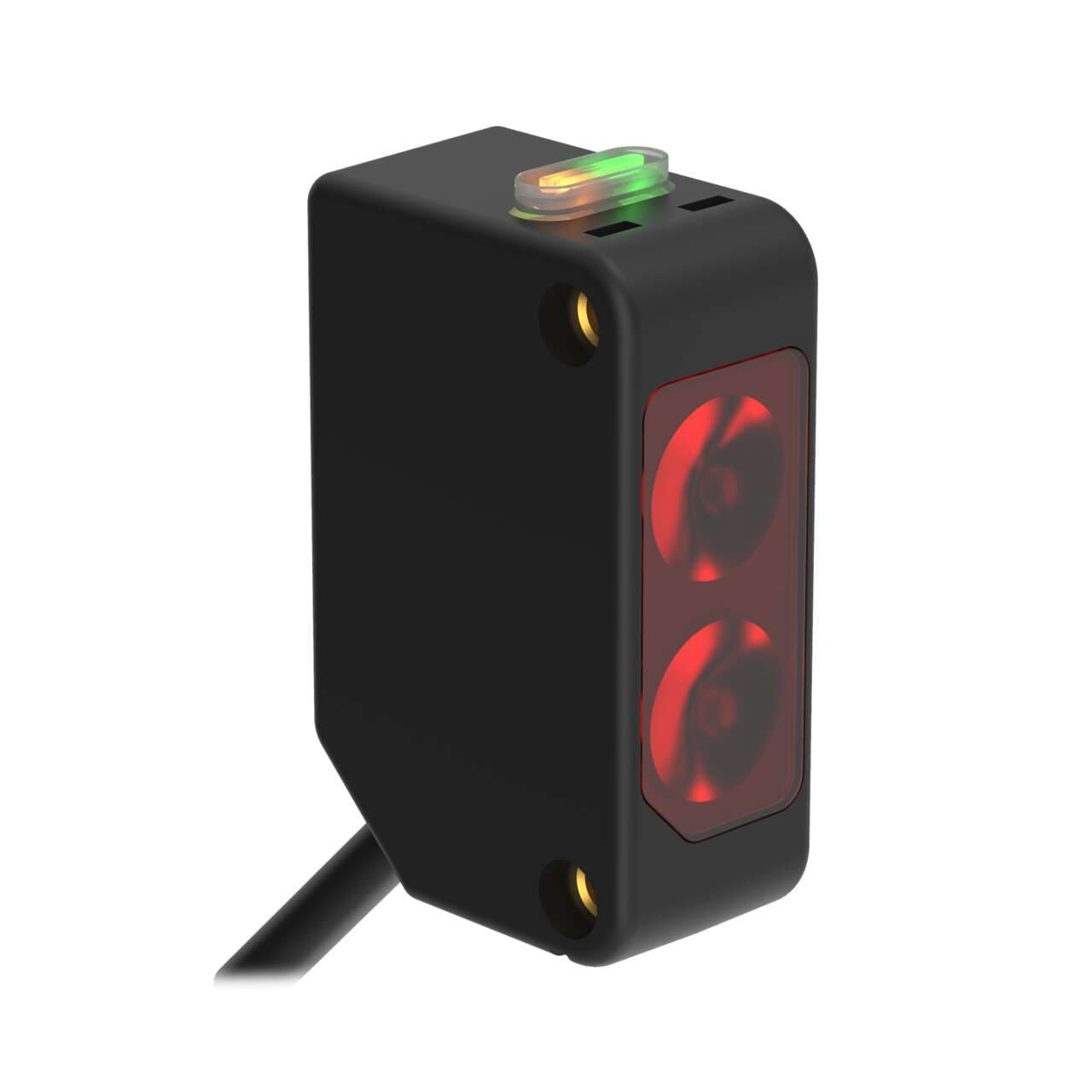

Banner Q20PFF50Q5 WORLD-BEAM Q20 Series: Fixed-Field; Range: 50 mm; Input 10-30 V dc; Output: Complementary Solid-State PNP; 150 mm (6 in) 4-pin M12 Pigtail QD

Part#:Q20PFF50Q5

Manufacturer:Banner

Alt. Part#:78197

Product Lifecycle:Active

Get a quick Quote!

WORLD-BEAM Q20 Series: Fixed-Field; Range: 50 mm; Input 10-30 V dc; Output: Complementary Solid-State PNP; 150 mm (6 in) 4-pin M12 Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q20PFF50Q5 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
22.6796 g
Country Of Origin
MX
EPLAN Cabinet Installable
No
IO Link
No
DeviceNet
No
Feature: Hazardous Area
No
Feature: Audible
No
Feature: Chemical Resistant
No
Adjustments
N/A
Lens Material
Acrylic
Feature: Timing (Hold/Delay)
No
Max Op. Relative Humidity [%]
95% @ 50°C
IP Rating
IP67
Feature: Encapsulated
No
Opposed Mode Emitter/Receiver
N/A
Indicator
LEDs
Barrel Diameter (mm)
N/A
NEMA Rating
NEMA 6
Number of Pins
4
Repeatability (µs)
155

Sensing Beam Wavelength

655

Delay at Power-up (ms)

100

Special Feature: Water Detection

Special Feature: Remote Teach

Special Feature: Intrinsically Safe

Connection

Pigtail QD

Operation

Light/Dark Operate

Output response time (ms)

0.8

Min Op. Temp. (°C)

-20

Max Op. Temp. (°C)

Outputs

PNP

Quick Disconnect Type

M12 (Euro)

Power Supply/Supply Voltage

10-30 V dc

Max Sensing Distance (mm)

Housing Style

Rectangular

Input/Output

Discrete

Primary Housing Material

Thermoplastic

Small Visible Spot

LED

Sensing Mode (Detailed)

Background Suppression (Fixed)

Cable Length (m)

0.15

Power

Sensing Mode (General)

Proximity

Sensing Beam

Visible Red LED

Primary brand

Banner Engineering

Sub-range name

Q20 series

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Connection type

Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector

Operating mode

Light-ON Dark-ON

Compliant with standard(s)

cURus CE

Main function

Sensor (Photo-electric)

Design

background suppression system

Light Color

Visible red

Ambient air temperature for operation

-20...+60 °C

Sensing distance

50mm

Wavelength

655 nm

Digital outputs

1 x digital output (PNP transistor)

Material

thermoplastic housing

Product series / family name

WORLD-BEAM series

Functions

Fixed-field photo-electric sensor green LED (power ON) amber LED (black (LO) wire conducting)

Shape

Rectangular

Degree of protection

IP67 NEMA 6

Order code / Manufacturer SKU

78197

Response time

0.8ms / 0.0008 s

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Q20PFF50Q5 Description

Banner Engineering Q20PFF50Q5 is a fixed-field photo-electric sensor from the Q20 series, designed with a background suppression system. It operates within an ambient air temperature range of -20 to +60 °C and is housed in a thermoplastic material, ensuring durability. This sensor is pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector for easy installation. It offers a sensing distance of 50mm and utilizes visible red light with a wavelength of 655 nm. The Q20PFF50Q5 operates on a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It features a rectangular shape, light-ON and dark-ON operating modes, and is equipped with one digital output (PNP transistor). The sensor's response time is quick, at 0.8ms / 0.0008 s, and it boasts a degree of protection rated at IP67 NEMA 6, making it suitable for various industrial applications.
