Q20NDLQ Banner Proximity Sensors

Q20NDLQ on Powermatic Associates
Banner
  • Q20NDLQ
  • Q20NDLQ

Part#:Q20NDLQ

Alt. Part#:78208

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

WORLD-BEAM Q20 Series: Long Range Diffuse (Red); Range: 800 mm; Input 10-30 V dc; Output: Complementary Solid-State NPN; 150 mm (6 in) M8 Pigtail QD

Product Details

  • Weight
    22.6796 g
  • Country Of Origin
    MX
  • EPLAN Cabinet Installable
    No
  • Feature: Audible
    No
  • DeviceNet
    No
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Feature: Chemical Resistant
    No
  • Feature: Timing (Hold/Delay)
    No
  • Adjustments
    Potentiometer
  • Barrel Diameter (mm)
    N/A
  • Indicator
    LEDs
  • Special Feature: Remote Teach
    No
  • Number of Pins
    4
  • NEMA Rating
    NEMA 6
  • Repeatability (µs)
    155
  • Delay at Power-up (ms)
    100
  • Sensing Beam Wavelength
    655
  • IP Rating
    IP67
  • Max Op. Temp. (°C)
    60
  • Connection
    Pigtail QD
  • Operation
    Light/Dark Operate
  • Outputs
    NPN
  • Input/Output
    Discrete
  • Max Sensing Distance (mm)
    800
  • Sensing Mode (General)
    Proximity
  • Cable Length (m)
    0.15
  • IO Link
    No
  • Lens Material
    Acrylic
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • Special Feature: Water Detection
    No
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    0.8
  • Min Op. Temp. (°C)
    -20
  • Quick Disconnect Type
    M8 (Pico)
  • Power Supply/Supply Voltage
    10-30 V dc
  • Primary Housing Material
    Thermoplastic
  • Housing Style
    Rectangular
  • Sensing Mode (Detailed)
    Diffuse
  • Sensing Beam
    Visible Red LED
  • Power
    DC
  • Sub-range name
    Q20 series
  • Wavelength
    624 nm
  • Digital outputs
    1 x digital output (NPN transistor)
  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Operating mode
    Light-ON Dark-ON
  • Degree of protection
    IP67 NEMA 6
  • Main function
    Sensor (Photo-electric)
  • Sensing distance
    800mm
  • Connection type
    Pre-wired with 6" / 150mm pigtail terminated with 4-pin Pico-style M8 connector
  • Material
    thermoplastic housing
  • Product series / family name
    WORLD-BEAM series
  • Light Color
    Visible red
  • Response time
    0.8ms / 0.0008 s
  • Compliant with standard(s)
    cURus CE
  • Functions
    Long-range photo-electric sensor green LED (power ON) amber LED (black (LO) wire conducting) potentiometer adjustment
  • Design
    diffuse mode
  • Shape
    Rectangular
  • Order code / Manufacturer SKU
    78208
  • Ambient air temperature for operation
    -20...+60 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q20NDLQ on Powermatic Associates is $109.00. Order now.


About the product

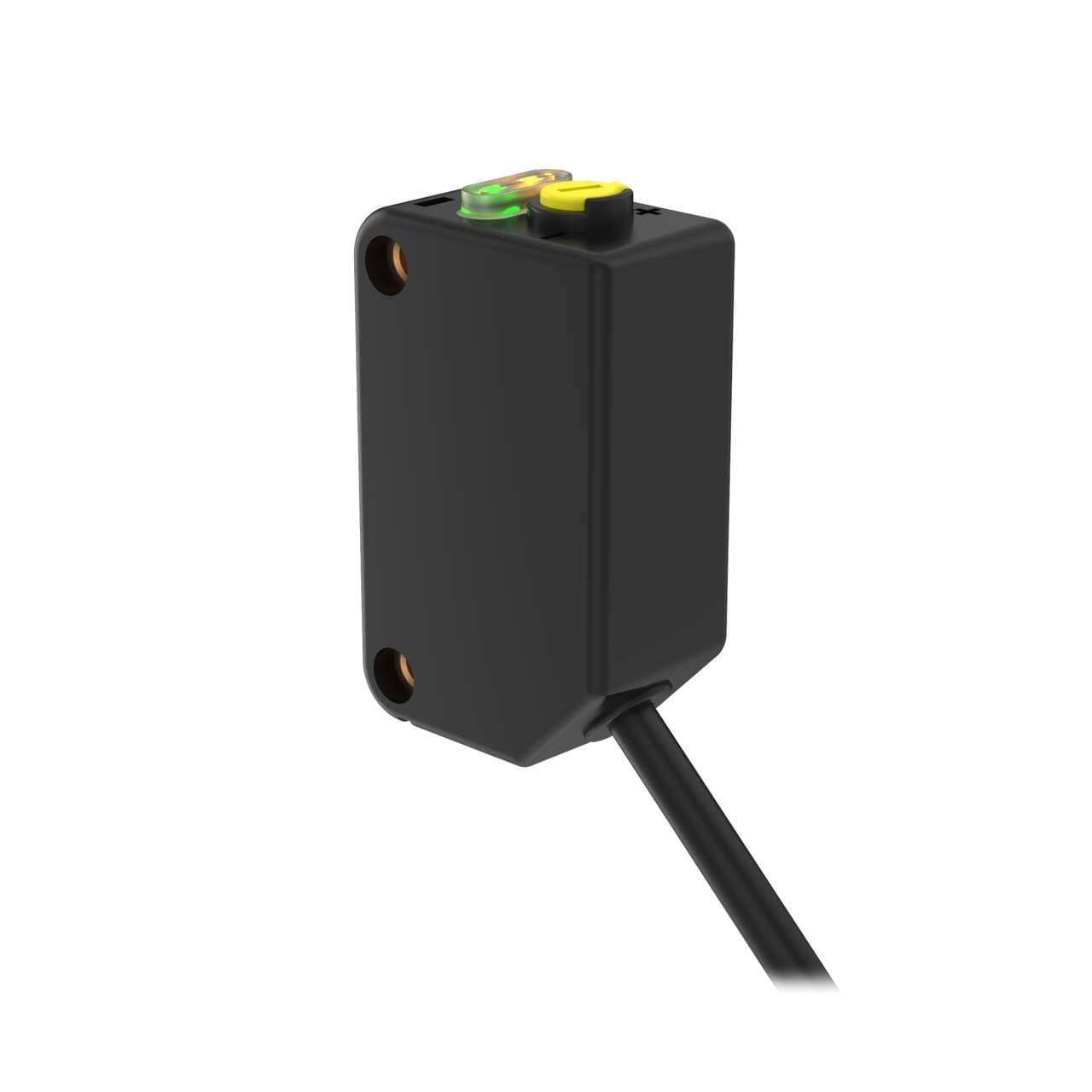

Banner Engineering Q20NDLQ is a long-range photo-electric sensor designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature range of -20 to +60 degrees Celsius and features a diffuse mode with potentiometer adjustment for fine-tuning. It comes pre-wired with a 6-inch (150mm) pigtail that terminates with a 4-pin Pico-style M8 connector, ensuring easy integration into existing systems. Part of the Q20 series, it boasts a rectangular shape with a thermoplastic housing, providing a degree of protection rated at IP67 NEMA 6 against dust and water ingress. The Q20NDLQ operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc, and offers a sensing distance of up to 800mm. It emits visible red light with a wavelength of 624 nm and supports both Light-ON and Dark-ON operating modes. Additionally, it features a single digital output (NPN transistor) and responds swiftly with a response time of 0.8ms (0.0008 seconds).
