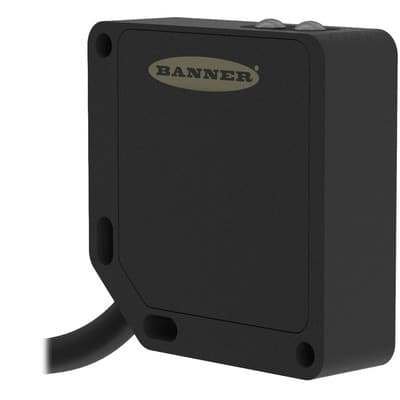

Q20NFF150 W-30 Banner Sensors & Transducers

Name: Q20NFF150 W-30
Brand: Banner

Part#:Q20NFF150 W-30

Manufacturer:Banner

Category:Sensors & Transducers

Product Lifecycle:Active

Product description

Fixed-field photo-electric sensor with background suppression system - Banner Engineering (WORLD-BEAM series - Q20 series) - Part #78164 - Sensing range 150mm - Visible red light (655nm) - 1 x digital output (NPN transistor) (Light-ON or Dark-ON operation

Product Details

Main function
Sensor (Photo-electric)
Product series / family name
WORLD-BEAM series
Primary brand
Banner Engineering
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Sensing distance
150mm
Response time
0.8ms / 0.0008 s
Ambient air temperature for operation
-20...+60 °C
Sub-range name
Q20 series
Design
background suppression system
Connection type
Pre-wired with 30ft / 9m cable terminated with bare end flying leads
Degree of protection
IP67 NEMA 6
Material
thermoplastic housing
Functions
Fixed-field photo-electric sensor green LED (power ON) amber LED (black (LO) wire conducting)
Shape
Rectangular
Operating mode
Light-ON Dark-ON
Order code / Manufacturer SKU
78164
Light Color
Visible red
Digital outputs
1 x digital output (NPN transistor)
Compliant with standard(s)
cURus CE
Wavelength
655 nm

Equivalent to

Q20NFF150W30

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Q20NFF150 W-30 Related Documents

Banner Engineering - WORLD-BEAM Q20 series - Datasheet.pdf

Similar products from: Banner Sensors & Transducers

QM42VT1

Banner

Banner Engineering QM42VT1 is a sensor designed for machine vibration and ambient temperature monitoring. It features a 1-wire serial interface and comes pre-wired with a 3m pigtail that terminates with a 5-pin Euro-style M12 connector. As part of the QM42VT series, this sensor offers a degree of protection rated at IP67 NEMA 6, making it suitable for harsh environments. It operates on a supply voltage range of 3.6Vdc to 5.5Vdc, with a nominal voltage of 5Vdc. The QM42VT1 has a rectangular shape and is constructed with a zinc alloy housing. It is capable of measuring temperatures ranging from -40 to +105°C and includes 1 x digital output (NPN transistor) for signal processing.

3 in stock

Manufacturer warranty

Q20NFF150 W-30 Banner

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare Q20NFF150 W-30 with other Sensors & Transducers products

Main function

Product series / family n...

Primary brand

Supply voltage (DC)

Sensing distance

Response time

Ambient air temperature f...

Sub-range name

Design

Connection type

Selected product

Backordered

Q20NFF150 W-30

Banner

Fixed-field photo-electric sensor with background suppression system - Banner Engineering (WORLD-BEA...

Main functionSensor (Photo-electric)

Product series / family nameWORLD-BEAM series

Primary brandBanner Engineering

Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc n...

Sensing distance150mm

Response time0.8ms / 0.0008 s

Ambient air temperature for operation-20...+60 °C

Sub-range nameQ20 series

Designbackground suppression syste...

Connection typePre-wired with 30ft / 9m cab...

3 in stock

QM42VT1

Banner

Banner Engineering QM42VT1 is a sensor designed for machine vibration and ambient temperature monito...

Main functionSensor (Temperature)

Product series / family nameSureCross series

Primary brandBanner Engineering

Supply voltage (DC)3.6Vdc-5.5Vdc (5Vdc nom.)

Sensing distance-

Response time-

Ambient air temperature for operation-

Sub-range nameQM42VT

Design1-wire serial interface

Connection typePre-wired with 3m pigtail te...

3 in stock

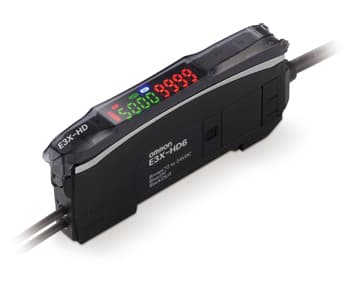

E3X-HD11 2M
