DEE2R-550D Banner Cordsets

DEE2R-550D on Powermatic Associates
Banner

Part#:DEE2R-550D

Manufacturer:Banner

Alt. Part#:72337

Product Lifecycle:Active

Get a quick Quote!

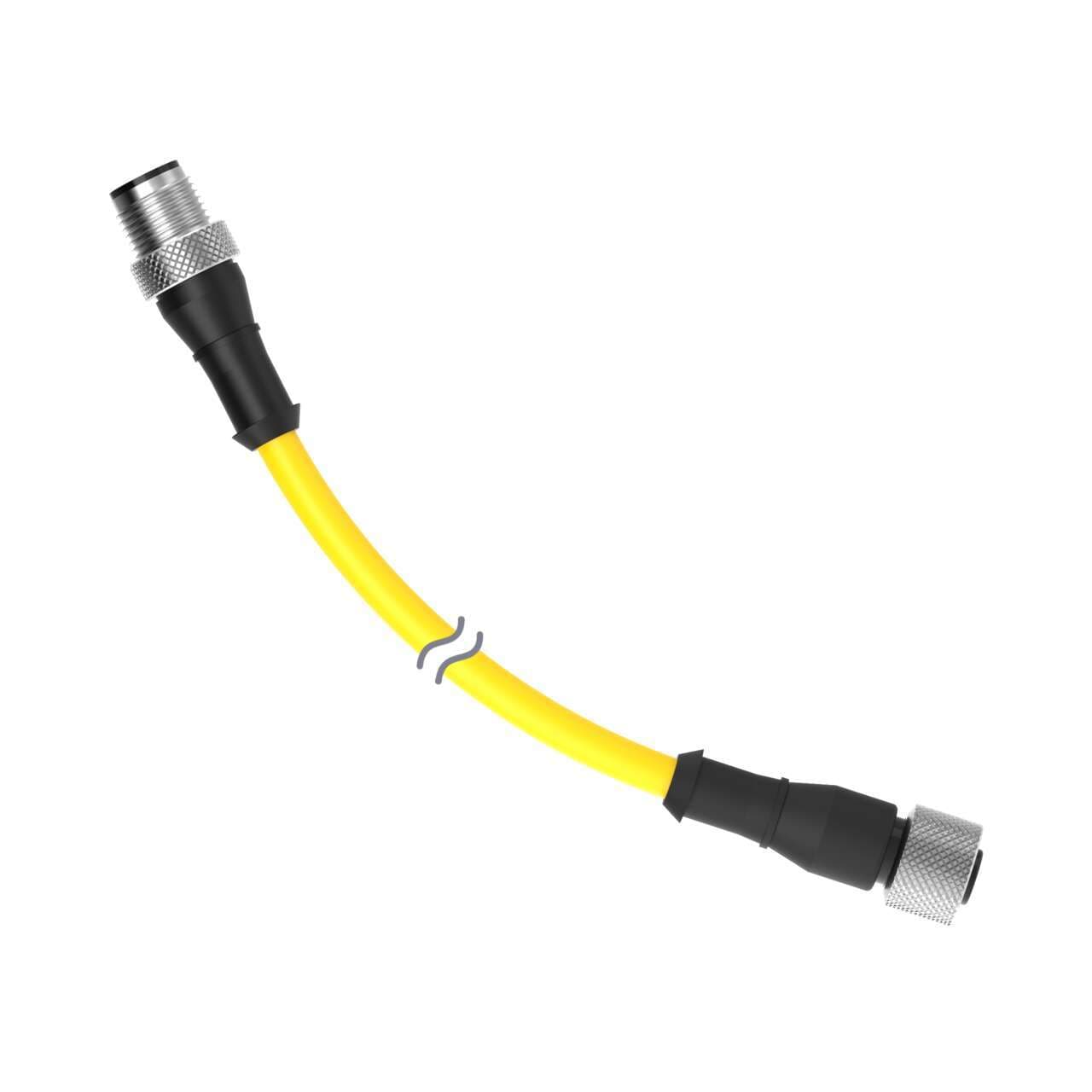

Cordset: Double Ended M12; 5-pin Straight Female; 5-pin Straight Male; 15.2 m 5x22 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nuts

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DEE2R-550D Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    671.31616 g
  • Country Of Origin
    TW
  • Oil/Grease Resistant
    No
  • Feature: Hazardous Area
    No
  • Secondary AWG
    22
  • Secondary Coupling Method
    M12 Single Key
  • Secondary Gender
    Male
  • Secondary Orientation
    Straight
  • Secondary Connector Type
    EURO
  • Secondary Number of Conductors
    5
  • Primary AWG
    22
  • Primary Number of Conductors
    5
  • Primary Orientation
    Straight
  • Primary Coupling Method
    M12 Single Key
  • Primary Connector Type
    EURO
  • IP Rating
    IP67
  • Primary Gender
    Female
  • Minimum Temp. (°C)
    -40
  • Current Rating (A)
    4.0
  • Voltage Rating (V)
    250 V ac/dc
  • Maximum Temp. (°C)
    105
  • Coupling Material/Color
    Nickel Plated Brass
  • Cable Jacket Material
    PVC
  • Shield/No Shield
    No Shield
  • Outside Cable Diameter (mm)
    5.6
  • Cable Jacket Color
    Yellow
  • Number of Connectors
    2
  • Cordset Length (m)
    15.2
  • Trunk Length (m)
    No Trunk
  • Number of Contacts
    5
  • Connector Body Material/Color
    PUR Black

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DEE2R-550D Description

Banner Engineering DEE2R-550D is a pre-assembled cable/cordset designed with a double-ended configuration, featuring a 5-pin Euro-style M12 female connector on one end and a 5-pin Euro-style M12 male connector on the other. The cable is constructed from PVC with nickel-plated brass coupling nuts, ensuring durability and a secure connection. It has a diameter of 5.6mm and a length of 15.2m, encased in black sheathing. This part is rated for a voltage of 250Vac and operates efficiently within an ambient air temperature range of -40 to +105°C. It is also designed to meet the IP67 degree of protection, signifying its resistance to dust and water ingress.
