DEE2R-515D Banner Cordsets

DEE2R-515D on Powermatic Associates
Banner

Part#:DEE2R-515D

Manufacturer:Banner

Alt. Part#:72335

Product Lifecycle:Active

Get a quick Quote!

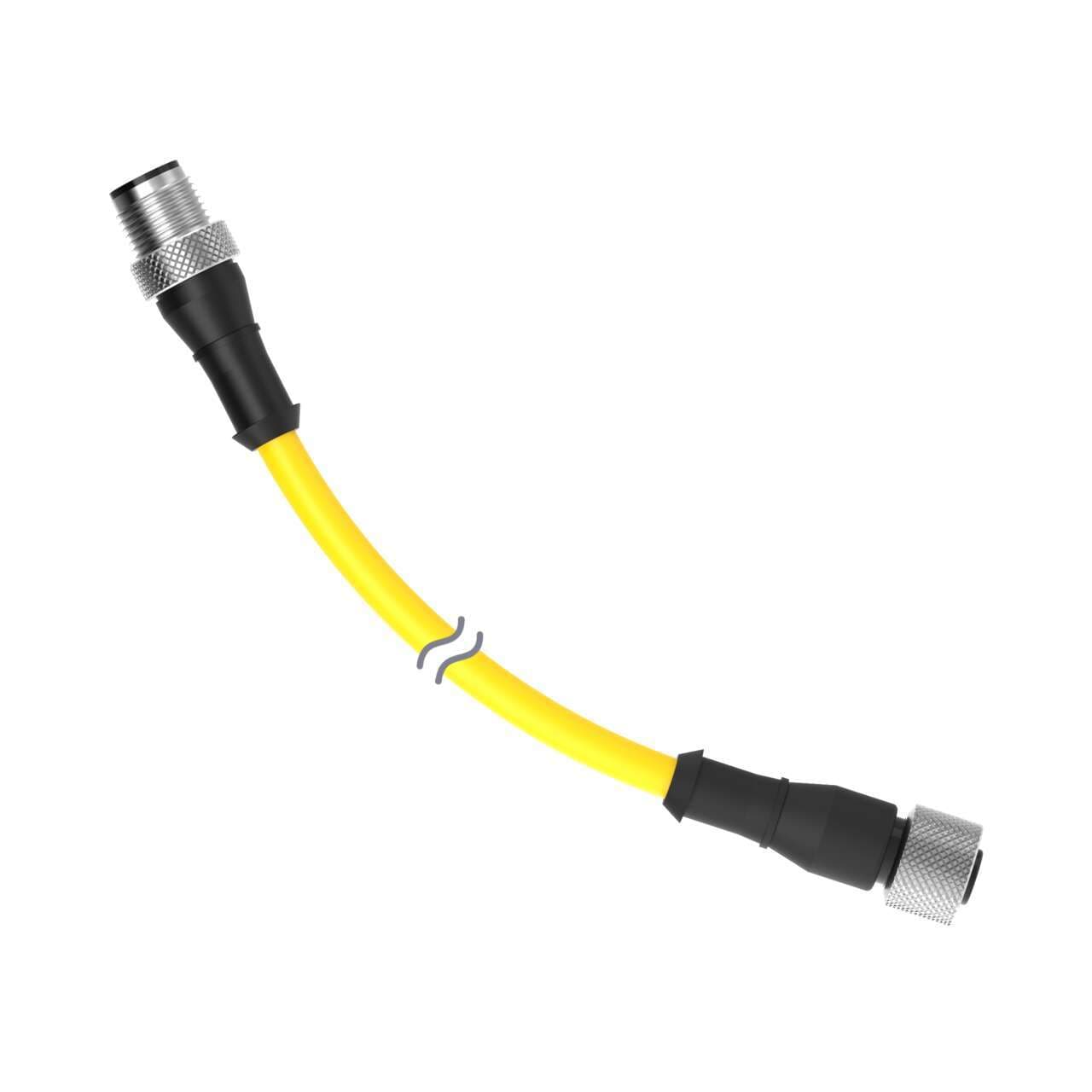

Cordset: Double Ended M12; 5-pin Straight Female; 5-pin Straight Male; 4.57 m 5x22 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nuts

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DEE2R-515D Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    217.72416 g
  • Country Of Origin
    TW
  • Oil/Grease Resistant
    No
  • Feature: Hazardous Area
    No
  • Secondary AWG
    22
  • Secondary Number of Conductors
    5
  • Secondary Gender
    Male
  • Secondary Orientation
    Straight
  • Secondary Coupling Method
    M12 Single Key
  • Secondary Connector Type
    EURO
  • Primary AWG
    22
  • Primary Orientation
    Straight
  • Primary Number of Conductors
    5
  • IP Rating
    IP67
  • Primary Coupling Method
    M12 Single Key
  • Primary Gender
    Female
  • Primary Connector Type
    EURO
  • Voltage Rating (V)
    250 V ac/dc
  • Minimum Temp. (°C)
    -40
  • Current Rating (A)
    4.0
  • Shield/No Shield
    No Shield
  • Maximum Temp. (°C)
    105
  • Coupling Material/Color
    Nickel Plated Brass
  • Cable Jacket Color
    Yellow
  • Trunk Length (m)
    No Trunk
  • Outside Cable Diameter (mm)
    5.6
  • Cordset Length (m)
    4.57
  • Connector Body Material/Color
    PUR Black
  • Cable Jacket Material
    PVC
  • Number of Connectors
    2
  • Number of Contacts
    5

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

DEE2R-515D Description

Banner Engineering DEE2R-515D is a pre-assembled cable/cordset designed with a double-ended configuration, featuring a 5-pin Euro-style M12 female connector on one end and a 5-pin Euro-style M12 male connector on the other. The cable is constructed with nickel-plated brass coupling nuts and PVC sheathing, ensuring durability and resistance to environmental factors with an ambient air temperature operation range of -40 to +105°C. It offers a degree of protection rated at IP67, making it suitable for use in environments where dust and moisture resistance is required. The cable has a rated voltage of 250Vac, a diameter of 5.6mm, and a length of 4.57m. The sheathing is black, aligning with standard color coding for industrial applications.

Manufacturer warranty

$46.00

Request a quote, and we will send availability within minutes.

Select Qty:

$46.00

$46.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
