Part#:JGF36250AA

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

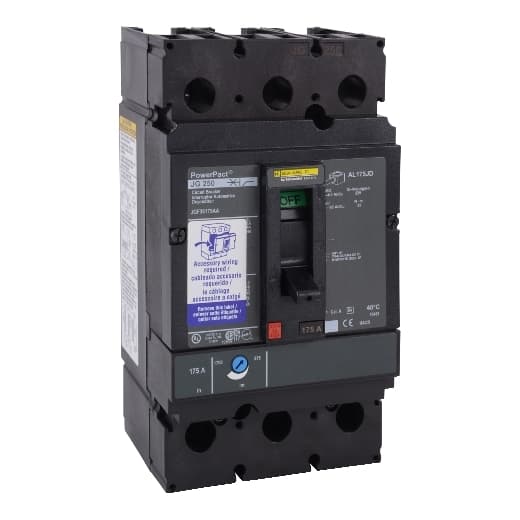

Square D by Schneider Electric JGF36250AA is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT JGF sub-range, featuring a factory-installed 1A/1B (1NO+1NC) auxiliary switch. This PowerPact J-Frame 250 TMD 3P 250A breaker is designed for 600Vac and 18kA busbar applications at 80% rating, with a terminal nut kit for fixed busbar connection on both line and load sides. It has three poles (3P) and offers thermal protection for overload and magnetic protection for short-circuit scenarios. The rated current is 250A, with a rated insulation voltage (Ui) of 750 V and a rated voltage (AC) of 600Vac 600Y/347Vac. It is designed for individual unit mount on plate, with a net height of 191 mm, a net width of 105 mm, and a net depth of 127 mm. The degree of protection is IP40, and it operates manually via a toggle. Protection settings include over-current fixed at 250A and short-circuit pickup current adjustable between 1250A and 2500A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 250 AT, and the frame current rating is 250 AF. It has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, 18kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc and 500Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (adjustable) with no display, and it falls under utilisation category A.

Product Details

  • Electrical Connection
    Busbar connection line Busbar connection load
  • Depth
    5 in (127.00 mm)
  • Continuous Current Rating
    80 %
  • Width
    4.12 in (104.65 mm)
  • Height
    7.52 in (191.01 mm)
  • Magnetic Tripping Current
    2500 A
  • Number Of Poles
    3P
  • Product Or Component Type
    Circuit breaker
  • Tightening Torque
    230.12 lbf.in (26 N.m) 0.15…0.29 in² (95…185 mm²) (AWG 3/0...350 kcmil)
  • Breaking Capacity Code
    G
  • Magnetic Hold Current
    1250 A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
