S2-56R-T Panduit Electronic Components

Name: S2-56R-T
Brand: Panduit

Part#:S2-56R-T

Manufacturer:Panduit

Category:Electronic Components

Product Lifecycle:Active

17 in stock

Apr 27, 2025

Product description

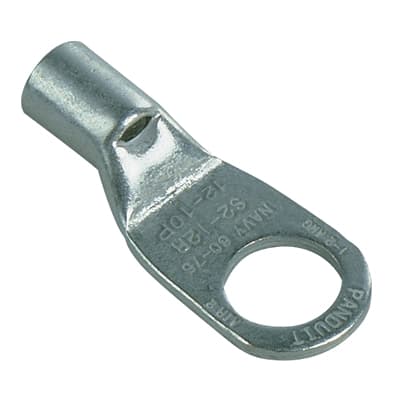

Pan-Lug Loose Piece Ring Terminal

Product Details

Part Features
Seamless tubular barrel provides a consistent high performance quality crimp, Round double thick toungue for reliable power applications, Barrel of terminal internally beveled to provide quick and easy wire insertion, Inspection window allows visual inspe
Wire Strip Length (mm)
15.875
Wire Strip Length (In.)
5/8
Finish/Coating
Tinned
Sub Brand
Pan-Lug
Insulation Material
Non-Insulated
Barrel Length (In.)
0.59
Barrel Length (mm)
15
Barrel Type
Seamless Tubular
Overall Width (mm)
17.8
Overall Width (In.)
0.7
Overall Length (mm)
43.2
Tongue Thickness (mm)
2.8
Tongue Width (mm)
17.8
Overall Length (In.)
1.7
Tongue Thickness (In.)
0.11
Tongue Width (In.)
0.7
Stud Hole Size (In.)
5/16
Product Type
Loose Piece Ring Terminal
Base Material
Copper

Maximum Wire Size (AWG)

1 - 2 AWG

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
