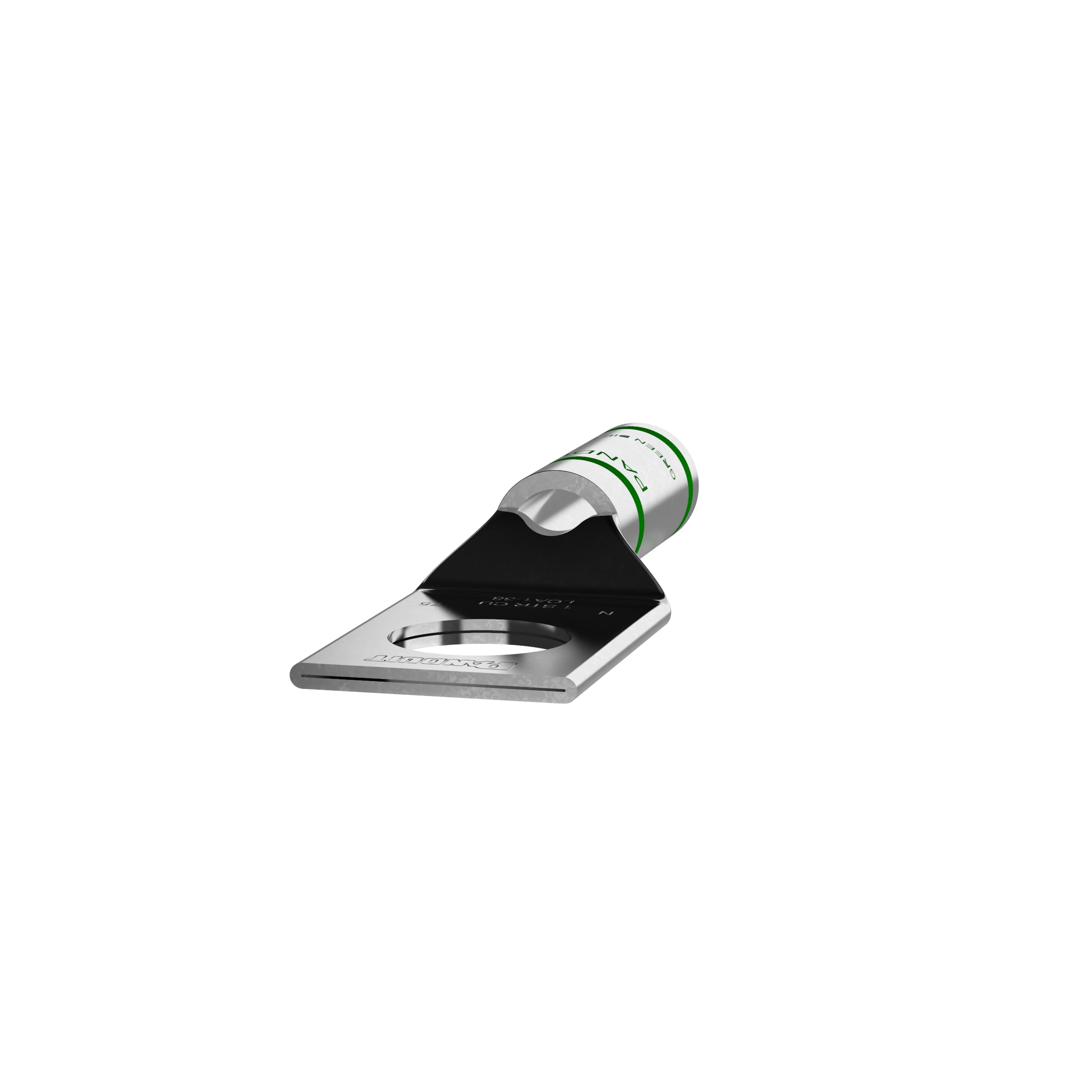

Panduit LCA1-38-E Panduit LCA1-38-E Copper Compression Lug
Panduit

Part#:LCA1-38-E

Manufacturer:Panduit

Product Lifecycle:Active

In-stock parts: 15

Oct 19, 2024

Panduit LCA1-38-E Copper Compression Lug

About the manufacturer: Panduit is one of the manufacturers that offers Electronic Components that you can order at Powermatic Associates site. Panduit, a top provider of infrastructure products and services for data networks and electrical power applications, assists in developing connectivity solutions that can significantly enhance your business success by improving the quality of your infrastructure.

Check out the LCA1-38-E Panduit price in the box on the right side or send a quick quote.

Product Details

  • Part Features
    Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
  • Wire Strip Length (mm)
    23.6
  • Wire Strip Length (In.)
    15/16
  • T & B Die Index Number
    11
  • Burndy Die Index Number
    11
  • Panduit Die Index Number
    P37
  • Maximum Voltage (kV)
    35
  • Color Code
    Green
  • UL Temperature Rating (°C)
    90
  • Standards Met
    C22.2 No. 65-13, 486A-486B File #E52164
  • Finish/Coating
    Tin-Plated
  • Overall Length (mm)
    50.5
  • Overall Length (In.)
    1.99
  • Tongue Width (mm)
    17.8
  • Tongue Thickness (In.)
    0.11
  • Tongue Angle
    Straight
  • Tongue Type
    Standard
  • Barrel Length (mm)
    22.4
  • Tongue Width (In.)
    0.7
  • Tongue Thickness (mm)
    2.8
  • Stud Hole Size (mm)
    9.5
  • Barrel Length (In.)
    0.88
  • Barrel Type
    Standard Barrel with Inspection Window
  • Stud Hole Size (In.)
    3/8
  • Outer Diameter (In.)
    0.47
  • Base Material
    Copper
  • Inside Diameter (mm)
    9.14
  • Outer Diameter (mm)
    11.93
  • Lug Type
    1 Stud Hole Lug
  • Product Type
    Tin-Plated Copper Compression Connectors - Lugs
  • Sub Brand
    Pan-Lug™
  • Copper Code Conductor Size (AWG)
    1
  • Inside Diameter (In.)
    0.36

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
