LCA1/0-38-X Panduit Electronic Components

LCA1/0-38-X on Powermatic Associates
Panduit

Part#:LCA1/0-38-X

Manufacturer:Panduit

Category:Electronic Components

Product Lifecycle:Active

15 in stock

Mar 15, 2025

Product description

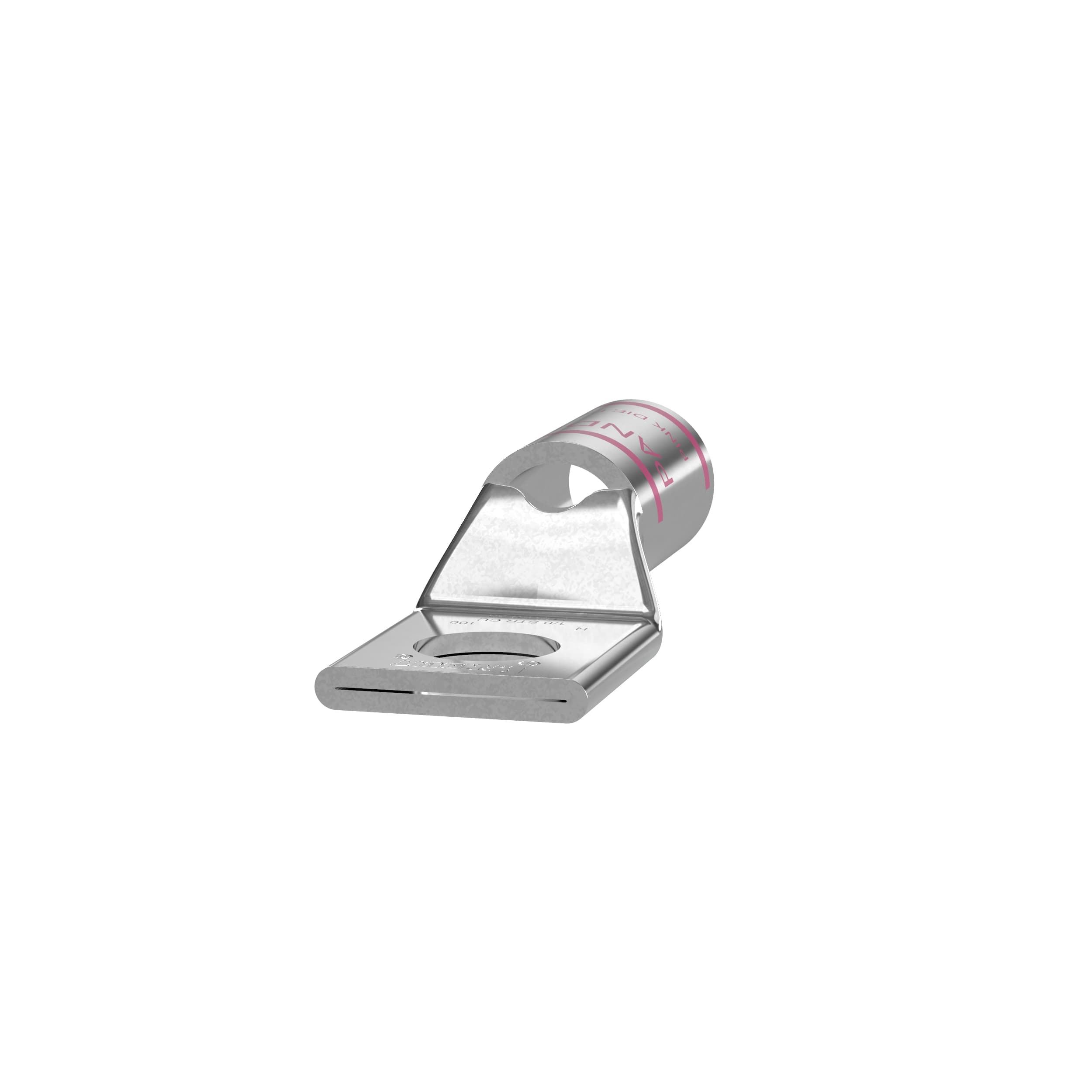

Panduit LCA1/0-38-X Copper Compression Lug

Product Details

  • Maximum Voltage (kV)
    35
  • Panduit Die Index Number
    P42
  • UL Temperature Rating (°C)
    90
  • Overall Length (In.)
    2.08
  • Tongue Width (mm)
    19.3
  • Stud Hole Size (mm)
    9.5
  • Wire Strip Length (mm)
    25.4
  • Wire Strip Length (In.)
    1
  • Part Features
    Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
  • Color Code
    Pink
  • Burndy Die Index Number
    12
  • Overall Length (mm)
    52.8
  • T & B Die Index Number
    12
  • Standards Met
    C22.2 No. 65-13, 486A-486B File #E52164
  • Finish/Coating
    Tin-Plated
  • Tongue Thickness (In.)
    0.12
  • Tongue Thickness (mm)
    3
  • Tongue Angle
    Straight
  • Tongue Width (In.)
    0.76
  • Barrel Length (mm)
    23.9
  • Tongue Type
    Standard
  • Barrel Length (In.)
    0.94
  • Barrel Type
    Standard Barrel with Inspection Window
  • Stud Hole Size (In.)
    3/8
  • Sub Brand
    Pan-Lug™
  • Copper Code Conductor Size (AWG)
    1/0
  • Lug Type
    1 Stud Hole Lug
  • Product Type
    Tin-Plated Copper Compression Connectors - Lugs
  • Outer Diameter (mm)
    0.2
  • Outer Diameter (In.)
    0.52
  • Base Material
    Copper
  • Inside Diameter (mm)
    9.9
  • Inside Diameter (In.)
    0.39

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.



Manufacturer warranty

LCA1/0-38-X Panduit

Get a quick Quote!

Request a quote, and we will send you price within minutes.

Stock:

15

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery


Secure Payment Processing


Warranty


Responsive Customer Support

Got Questions? We've Got Answers!


Need more details?

Feel free to chat with us

Compare LCA1/0-38-X with other products

Maximum Voltage (kV)

Panduit Die Index Number

UL Temperature Rating (°C...

Overall Length (In.)

Tongue Width (mm)

Stud Hole Size (mm)

Wire Strip Length (mm)

Wire Strip Length (In.)

Part Features

Color Code

Burndy Die Index Number

Overall Length (mm)

T & B Die Index Number

Standards Met

Finish/Coating

Tongue Thickness (In.)

Tongue Thickness (mm)

Tongue Angle

Tongue Width (In.)

Barrel Length (mm)

Tongue Type

Barrel Length (In.)

Barrel Type

Stud Hole Size (In.)

Sub Brand

Copper Code Conductor Siz...

Lug Type

Product Type

Outer Diameter (mm)

Outer Diameter (In.)

Base Material

Inside Diameter (mm)

Inside Diameter (In.)

Selected product

LCA1/0-38-X
15 in stock
LCA1/0-38-X
Panduit

Panduit LCA1/0-38-X Copper Compression Lug

Maximum Voltage (kV)35

Panduit Die Index NumberP42

UL Temperature Rating (°C)90

Overall Length (In.)2.08

Tongue Width (mm)19.3

Stud Hole Size (mm)9.5

Wire Strip Length (mm)25.4

Wire Strip Length (In.)1

Part FeaturesTin plated to inhibit corros...

Color CodePink

Burndy Die Index Number12

Overall Length (mm)52.8

T & B Die Index Number12

Standards MetC22.2 No. 65-13, 486A-486B F...

Finish/CoatingTin-Plated

Tongue Thickness (In.)0.12

Tongue Thickness (mm)3

Tongue AngleStraight

Tongue Width (In.)0.76

Barrel Length (mm)23.9

Tongue TypeStandard

Barrel Length (In.)0.94

Barrel TypeStandard Barrel with Inspect...

Stud Hole Size (In.)3/8

Sub BrandPan-Lug™

Copper Code Conductor Size (AWG)1/0

Lug Type1 Stud Hole Lug

Product TypeTin-Plated Copper Compressio...

Outer Diameter (mm)0.2

Outer Diameter (In.)0.52

Base MaterialCopper

Inside Diameter (mm)9.9

Inside Diameter (In.)0.39

LCA1/0-14-X
15 in stock
LCA1/0-14-X
Panduit

1H LUG STND BRL 1/0 AWG1/4" STUD INSP WIND PINKROHS, 10PCS

Maximum Voltage (kV)35

Panduit Die Index NumberP42

UL Temperature Rating (°C)90

Overall Length (In.)1.95

Tongue Width (mm)19.3

Stud Hole Size (mm)6.4

Wire Strip Length (mm)25.4

Wire Strip Length (In.)1

Part FeaturesTin plated to inhibit corros...

Color CodePink

Burndy Die Index Number12

Overall Length (mm)49.5

T & B Die Index Number12

Standards MetC22.2 No. 65-13, 486A-486B F...

Finish/CoatingTin-Plated

Tongue Thickness (In.)0.12

Tongue Thickness (mm)3

Tongue AngleStraight

Tongue Width (In.)0.76

Barrel Length (mm)23.9

Tongue TypeStandard

Barrel Length (In.)0.94

Barrel TypeStandard Barrel with Inspect...

Stud Hole Size (In.)1/4

Sub BrandPan-Lug™

Copper Code Conductor Size (AWG)1/0

Lug Type1 Stud Hole Lug

Product TypeTin-Plated Copper Compressio...

Outer Diameter (mm)0.2

Outer Diameter (In.)0.52

Base MaterialCopper

Inside Diameter (mm)9.9

Inside Diameter (In.)0.39

LCA1-38-E
15 in stock
LCA1-38-E
Panduit

Panduit LCA1-38-E Copper Compression Lug

Maximum Voltage (kV)35

Panduit Die Index NumberP37

UL Temperature Rating (°C)90

Overall Length (In.)1.99

Tongue Width (mm)17.8

Stud Hole Size (mm)9.5

Wire Strip Length (mm)23.6

Wire Strip Length (In.)15/16

Part FeaturesTin plated to inhibit corros...

Color CodeGreen

Burndy Die Index Number11

Overall Length (mm)50.5

T & B Die Index Number11

Standards MetC22.2 No. 65-13, 486A-486B F...

Finish/CoatingTin-Plated

Tongue Thickness (In.)0.11

Tongue Thickness (mm)2.8

Tongue AngleStraight

Tongue Width (In.)0.7

Barrel Length (mm)22.4

Tongue TypeStandard

Barrel Length (In.)0.88

Barrel TypeStandard Barrel with Inspect...

Stud Hole Size (In.)3/8

Sub BrandPan-Lug™

Copper Code Conductor Size (AWG)1

Lug Type1 Stud Hole Lug

Product TypeTin-Plated Copper Compressio...

Outer Diameter (mm)11.93

Outer Diameter (In.)0.47

Base MaterialCopper

Inside Diameter (mm)9.14

Inside Diameter (In.)0.36
