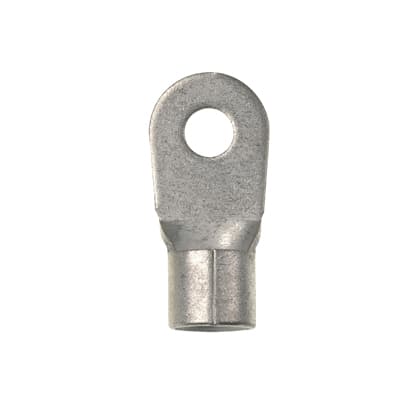

P2-14R-X Panduit Electronic Components

Product Details

• Part Features
  • Ring tongue design assures a secure connection in high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength
• Tongue Length (mm)
  28.4
• For Use With
  CT-1701, CT-2600, CD-2600-2
• Product Type
  Ring Terminal
• Packaging Type
  Bottle
• Tongue Width (mm)
  12.2
• Tongue Thickness (In.)
  0.06
• Tongue Width (In.)
  0.48
• Tongue Thickness (mm)
  1.5
• Tongue Length (In.)
  1.12
• Overall Width (mm)
  21.8
• Overall Width (In.)
  0.86
• Overall Length (mm)
  39.4
• Overall Length (In.)
  1.55
• Sub Brand
  Pan-Term
• Inside Diameter (mm)
  9.4
• Inside Diameter (In.)
  0.37
• Outer Diameter (mm)
  12.2
• Outer Diameter (In.)
  0.48
• Seam Type
  Brazed
Maximum Wire Insulation Diameter (mm)
12.2
Flammability Rating
NA
Maximum Wire Insulation Diameter (In.)
0.48
Maximum Operating Temperature (°F)
302
Maximum Operating Temperature (°C)
150
Insulation Diameter (In.)
0.48
Barrel Length (mm)
14.2
Insulation Diameter (mm)
12.2
Color Code
Metallic
Barrel Length (In.)
0.56
Wire Strip Length (In.)
0.44
Standards Met
UL Listed 587H E52164; CSA Certified LR31212
Wire Strip Length (mm)
11.2
Finish/Coating
Tin-Plated
Maximum Voltage (kV)
2
Base Material
Copper
Maximum Voltage (V)
2000
Stud Size
1/4"
Stud Hole Size (In.)
27/100
Minimum Copper Conductor Size (AWG SOL)
NA
Maximum Copper Conductor Size (AWG SOL)
#2
Minimum Copper Conductor Size (AWG)
NA
Minimum Copper Conductor Size (AWG STR)
NA
Maximum Wire Size (AWG)
#2
Maximum Copper Conductor Size (AWG)
#2
Maximum Copper Conductor Size (AWG STR)
#2
Insulation Material
Non-Insulated
Stud Hole Size (mm)
16.8
