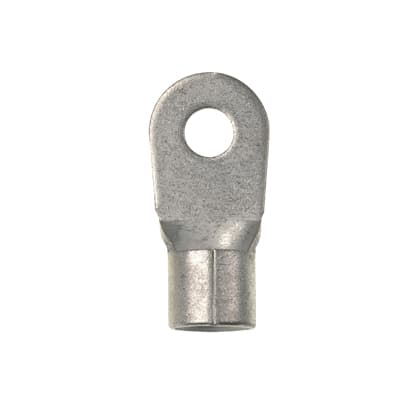

P6-10R-T Panduit Electronic Components

Product Details

• Part Features
  • Ring tongue design assures a secure connection in high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength
• For Use With
  CT-1701, CT-2600
• Product Type
  Ring Terminal
• Tongue Width (In.)
  0.47
• Tongue Width (mm)
  11.9
• Tongue Thickness (mm)
  1.1
• Packaging Type
  BOX
• Tongue Length (mm)
  24.6
• Tongue Thickness (In.)
  0.05
• Tongue Length (In.)
  0.97
• Overall Width (mm)
  11.9
• Overall Width (In.)
  0.47
• Inside Diameter (mm)
  5.8
• Overall Length (mm)
  30.7
• Inside Diameter (In.)
  0.23
• Sub Brand
  Pan-Term
• Overall Length (In.)
  1.21
• Seam Type
  Brazed
• Outer Diameter (mm)
  8.1
• Maximum Wire Insulation Diameter (mm)
  8.1
Outer Diameter (In.)
0.32
Insulation Diameter (mm)
8.1
Maximum Wire Insulation Diameter (In.)
0.32
Maximum Operating Temperature (°C)
150
Maximum Operating Temperature (°F)
302
Flammability Rating
NA
Insulation Diameter (In.)
0.32
Barrel Length (mm)
12.3
Finish/Coating
Tin-Plated
Color Code
Metallic
Maximum Voltage (kV)
2
Barrel Length (In.)
0.49
Maximum Voltage (V)
2000
Wire Strip Length (mm)
11.7
Base Material
Copper
Standards Met
UL Listed 587H E52164; CSA Certified LR31212
Wire Strip Length (In.)
0.46
Minimum Copper Conductor Size (AWG)
NA
Minimum Copper Conductor Size (AWG STR)
NA
Minimum Copper Conductor Size (AWG SOL)
NA
Maximum Wire Size (AWG)
#6
Maximum Copper Conductor Size (AWG STR)
#6
Maximum Copper Conductor Size (AWG)
#6
Maximum Copper Conductor Size (AWG SOL)
#6
Insulation Material
Non-Insulated
Stud Hole Size (In.)
1/5
Stud Size
#10
Stud Hole Size (mm)
5.1
