Part#:JGF36200

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Only 4 left in stock. Order Now!

Apr 1, 2025

Product description

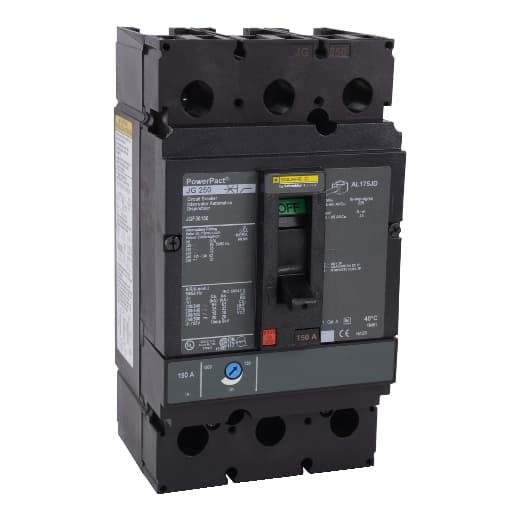

Square D by Schneider Electric JGF36200 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT JGF sub-range, featuring a PowerPact J-Frame 250 TMD 3P 200A 600Vac design. It includes a Term. nut kit for fixed busbar connection on both line and load sides, with three poles (3P). This MCCB offers thermal protection for overload and magnetic protection for short-circuit scenarios. It has a rated current of 200A, with a rated insulation voltage (Ui) of 750 V and a rated voltage (AC) of 600Vac 600Y/347Vac. The unit is designed for individual mounting on a plate, with dimensions of 191 mm in height, 105 mm in width, and 127 mm in depth. It features an IP40 degree of protection and operates via a toggle (manual) mechanism. Protection settings include over-current fixed at 200A and short-circuit pickup current adjustable between 1000A and 2000A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 200 AT, with a frame current rating of 250 AF. Its short circuit breaking rating varies by voltage, including 65kA at 240Vac, 35kA at 480Vac, 18kA at 600Vac, and 20kA at both 250Vdc and 500Vdc, all under UL489 standards. The trip unit type is thermal-magnetic (adjustable) without a display, and it falls under utilisation category A.

Product Details

  • Electrical Connection
    Busbar connection line Busbar connection load
  • Continuous Current Rating
    80 %
  • Product Or Component Type
    Circuit breaker
  • Depth
    5 in (127.00 mm)
  • Width
    4.12 in (104.65 mm)
  • Number Of Poles
    3P
  • Tightening Torque
    230.12 lbf.in (26 N.m) 0.15…0.29 in² (95…185 mm²) (AWG 3/0...350 kcmil)
  • Height
    7.52 in (191.01 mm)
  • Magnetic Tripping Current
    2000 A
  • Magnetic Hold Current
    1000 A
  • Breaking Capacity Code
    G

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of JGF36200 on Powermatic Associates is $3,779.00. Order now.
