JGF36150 Schneider Electric Industrial Automation Components

JGF36150 on Powermatic Associates
Schneider Electric

Part#:JGF36150

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

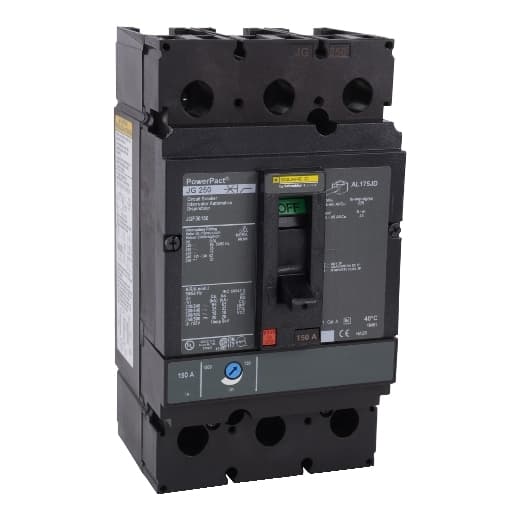

Square D by Schneider Electric JGF36150 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT JGF sub-range, featuring a PowerPact J-Frame 250 TMD 3P 150A 600Vac 18kA busbar 80% rated design. It includes a Term. nut kit for fixed busbar connection on both line and load sides, with three poles (3P). The breaker offers thermal protection for overload and magnetic protection for short-circuit scenarios. It has a rated current of 150A, with a rated insulation voltage (Ui) of 750 V and a rated voltage (AC) of 600Vac 600Y/347Vac. The unit is designed for individual mount on plate, with dimensions of 191 mm in height, 105 mm in width, and 127 mm in depth. It features a degree of protection of IP40 and operates manually via a toggle. Protection settings include over-current fixed at 150A and short-circuit pickup current adjustable between 750A and 1500A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 150 AT, with a frame current rating of 250 AF. Its short circuit breaking rating varies across voltages, including 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, 18kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc and 500Vdc, all under UL489. The trip unit type is thermal-magnetic (adjustable) without a display, and it falls under utilisation category A.

Product Details

  • Electrical Connection
    Busbar connection line Busbar connection load
  • Continuous Current Rating
    80 %
  • Width
    4.12 in (104.65 mm)
  • Depth
    5 in (127.00 mm)
  • Product Or Component Type
    Circuit breaker
  • Breaking Capacity Code
    G
  • Height
    7.52 in (191.01 mm)
  • Number Of Poles
    3P
  • Magnetic Tripping Current
    1500 A
  • Tightening Torque
    230.12 lbf.in (26 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 4...AWG 4/0)
  • Magnetic Hold Current
    750 A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of JGF36150 on Powermatic Associates is $5,668.50. Order now.
