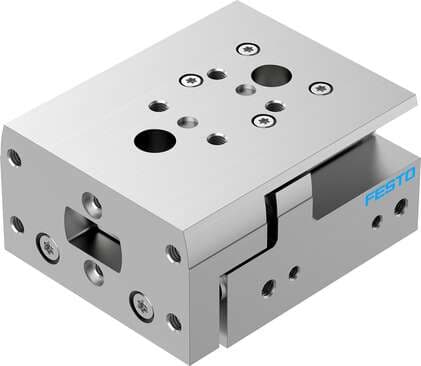

8078854 Festo Pneumatic Actuators

Product Details

• Repetition accuracy
  <= 0.3 mm
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Max. force Fy
  840 N
• Max. torque Mx
  11.3 Nm
• Pneumatic connection
  M5
• Cover material
  Wrought aluminum alloy
• Stroke
  20 mm
• Guide
  Recirculating ball bearing guide
• Drive unit operating mode
  Yoke
• Symbol
  00991249
• Mode of operation
  Double-acting
• Impact energy in the end positions
  0.15 J
• Type of mounting
  With through-hole
• Seals material
  HNBR
• Type code
  DGST
• Design
  Twin piston Slide
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Max. force Fz
  840 N
• Max. torque Mz
  7 Nm
• Product weight
  482 g
Piston rod material
High-alloy stainless steel
Piston diameter
16 mm
Mounting position
Any
Operating pressure
0.1 MPa ... 0.8 MPa
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Cushioning length
0.8 mm
Theoretical force at 6 bar, retracting
207 N
Theoretical force at 6 bar, advancing
241 N
Note on materials
Free of copper and PTFE RoHS-compliant
Guide material
POM High-alloy steel
Cushioning
Elastomer cushioning, at both ends, stroke not adjustable
Max. speed
0.5 m/s
Position sensing
For proximity sensor
Ambient temperature
-10 °C ... 60 °C
Max. torque My
7 Nm
Moving mass
256 g
Housing material
Wrought aluminum alloy
