574374 Festo Directional Control Valves

574374 on Powermatic Associates
Festo

Part#:574374

Alt. Part#:VUVG-L14-T32H-MZT-G18-1P3

Manufacturer:Festo

Category:Directional Control Valves

Product Lifecycle:Active

Product description

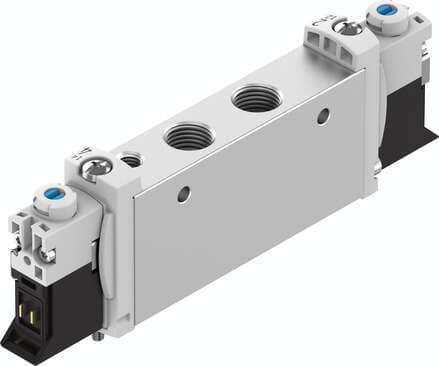

solenoid valve VUVG-L14-T32H-MZT-G18-1P3 Valve function: 2x3/2 open/closed, monostable, Type of actuation: electrical, Valve size: 14 mm, Standard nominal flow rate: 480 - 500 l/min, Operating pressure: -0,9 - 10 bar

Product Details

  • Valve function
    2x3/2, open/closed, monostable
  • Actuation type
    Electrical
  • Reset method
    Mechanical spring
  • Sealing principle
    Soft
  • Symbol
    00992950
  • Switching time off
    18 ms
  • Max. negative test pulse on 1 signal
    900 µs
  • Vibration resistance
    Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
  • Electrical connection
    Via electrical sub-base
  • Pneumatic connection 2
    G1/8
  • Note on materials
    RoHS-compliant
  • Operating pressure
    -0.9 bar ... 10 bar
  • Valve size
    14 mm
  • Standard nominal flow rate
    480 l/min ... 500 l/min
  • Exhaust air function
    With flow control option
  • Manual override
    Detenting Covered
  • Duty cycle
    100%
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Shock resistance
    Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Pneumatic connection 5
    G1/8
  • Lap
    Overlap
  • Operating voltage
    24V DC
  • Degree of protection
    IP40 With plug socket
  • Type code
    VUVG
  • Suitability for vacuum
    yes
  • Coil characteristics
    24 V DC: 1.0 W 24 V DC: low-current phase 0.3 W, high-current phase 1.0 W
  • Pilot medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Ambient temperature
    -5 °C ... 60 °C
  • Pneumatic connection 1
    G1/8
  • Pilot pressure MPa
    0.3 MPa ... 0.8 MPa
  • Pneumatic working port
    G1/8
  • Nominal width
    4.3 mm
  • Type of control
    Pilot-controlled
  • Pilot pressure
    3 bar ... 8 bar
  • Max. positive test pulse with 0 signal
    700 µs
  • Permissible voltage fluctuations
    +/- 10 %
  • Restricted ambient and media temperature
    -5 - 50 °C Without holding power reduction
  • Type of mounting
    Optionally: With through-hole
  • Pneumatic connection 4
    G1/8
  • Seals material
    HNBR NBR
  • Design
    Piston gate valve
  • Certification
    RCM compliance mark c UL us - Recognized (OL)
  • Mounting position
    Any
  • Pilot air supply port
    External
  • On switching time
    12 ms
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Temperature of medium
    -5 °C ... 60 °C
  • Product weight
    80 g
  • Pilot air port 12/14
    M5
  • Housing material
    Wrought aluminum alloy

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
