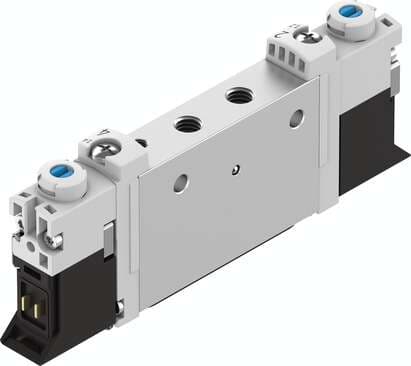

574353 Festo Directional Control Valves
Part#:574353
Alt. Part#:VUVG-L10-T32U-MZT-M5-1P3
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description
solenoid valve VUVG-L10-T32U-MZT-M5-1P3 Valve function: 2x3/2 open, monostable, Type of actuation: electrical, Valve size: 10 mm, Standard nominal flow rate: 125 l/min, Operating pressure: -0,9 - 10 bar
Product Details
- Duty cycle 100%
- Pilot pressure MPa 0.2 MPa ... 0.8 MPa
- Certification RCM compliance mark c UL us - Recognized (OL)
- Exhaust air function With flow control option
- Type of control Pilot-controlled
- On switching time 8 ms
- Valve function 2x3/2, open, monostable
- Standard nominal flow rate 125 l/min
- Degree of protection IP40 With plug socket
- Manual override Detenting Covered
- Pilot pressure 2 bar ... 8 bar
- Coil characteristics 24 V DC: 1.0 W 24 V DC: low-current phase 0.3 W, high-current phase 1.0 W
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Product weight 54 g
- Housing material Wrought aluminum alloy
- Lap Overlap
- Actuation type Electrical
- Design Piston gate valve
- Sealing principle Soft
- Pilot air supply port External
- Max. negative test pulse on 1 signal 900 µs
- Restricted ambient and media temperature -5 - 50 °C Without holding power reduction
- Type of mounting Optionally: With through-hole
- Pneumatic connection 1 M5
- Pneumatic working port M5
- Operating voltage 24V DC
- Type code VUVG
- Switching time off 11 ms
- Max. positive test pulse with 0 signal 700 µs
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Temperature of medium -5 °C ... 60 °C
- Pilot air port 12/14 M3
- Pneumatic connection 5 M5
- Operating pressure -0.9 bar ... 10 bar
- Valve size 10 mm
- Reset method Mechanical spring
- Nominal width 1.8 mm
- Mounting position Any
- Symbol 00992949
- Suitability for vacuum yes
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Ambient temperature -5 °C ... 60 °C
- Pneumatic connection 4 M5
- Seals material HNBR NBR
- Permissible voltage fluctuations +/- 10 %
- Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Electrical connection Via electrical sub-base
- Pneumatic connection 2 M5
- Note on materials RoHS-compliant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
