MQDC1-506 Banner Cordsets

MQDC1-506 on Powermatic Associates
Banner

Part#:MQDC1-506

Manufacturer:Banner

Category:Cordsets

Alt. Part#:51127

Product Lifecycle:Active

In-stock parts: 184

Dec 21, 2024

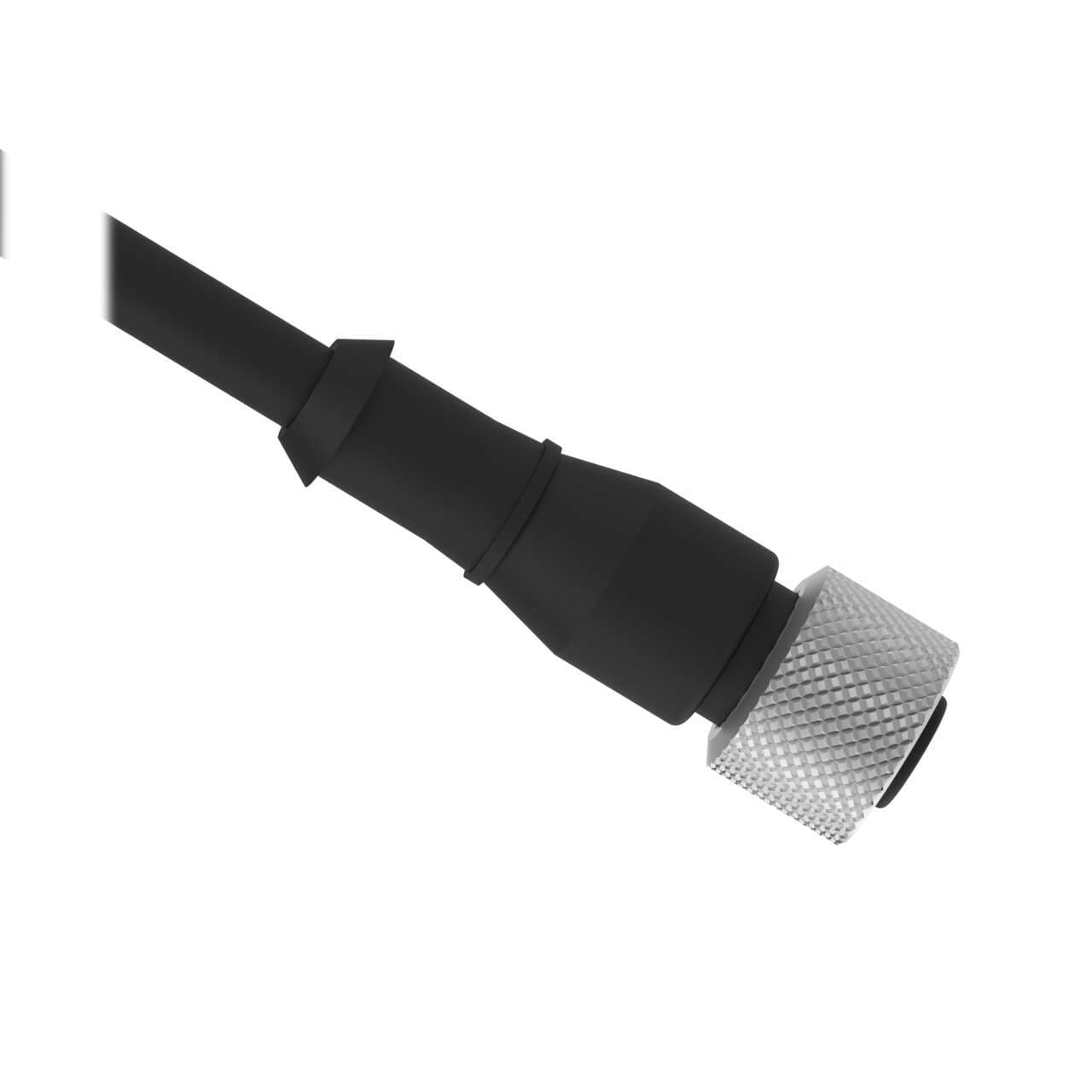

Cordset: Single Ended A-Code M12; 5-pin Straight Female Connector; 2 m (6.56 ft) Black PVC Jacket; Nickel-Plated Brass Coupling Nut

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the MQDC1-506 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    104.4168784 g
  • Country Of Origin
    TW
  • Secondary Connector Type
    Flying Leads
  • Oil/Grease Resistant
    No
  • Feature: Hazardous Area
    No
  • Primary AWG
    22
  • Primary Number of Conductors
    5
  • Primary Orientation
    Straight
  • Primary Gender
    Female
  • Primary Connector Type
    EURO
  • Coupling Material/Color
    Nickel Plated Brass
  • Maximum Temp. (°C)
    105
  • Minimum Temp. (°C)
    -40
  • Current Rating (A)
    4.0
  • Primary Coupling Method
    M12 Single Key
  • IP Rating
    IP67
  • Trunk Length (m)
    No Trunk
  • Voltage Rating (V)
    250 V ac/dc
  • Cordset Length (m)
    1.83
  • Shield/No Shield
    No Shield
  • Outside Cable Diameter (mm)
    5.6
  • Connector Body Material/Color
    PUR Black
  • Cable Jacket Material
    PVC
  • Number of Connectors
    1
  • Number of Contacts
    5
  • Cable Jacket Color
    Black

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


MQDC1-506 Description

Banner Engineering MQDC1-506 is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.6mm diameter PVC cable and a length of 6.5ft (2m). The cable is equipped with a 5-pin Euro-style M12 female straight connector and bare end flying leads for connectivity. The connection nut is made from nickel-plated brass, ensuring durability. This model operates effectively within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP67, making it suitable for challenging environments. The cable's sheathing is black, and it is rated for a voltage of 250Vac.
