574323 Festo Cable Assemblies

574323 on Powermatic Associates
Festo

Part#:574323

Alt. Part#:NEBU-M12G5-E-10-Q8N-M12G5

Manufacturer:Festo

Category:Cable Assemblies

Product Lifecycle:Active

Product description

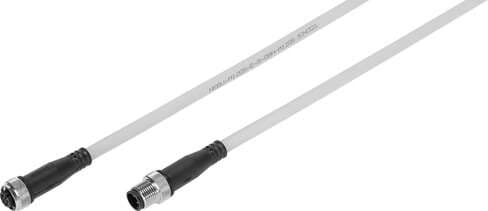

connecting cable NEBU-M12G5-E-10-Q8N-M12G5 Suitable for use with energy chains. Conforms to standard: EN 61076-2-101, Cable identification: Without inscription label holder, Product weight: 295 g, Electrical connection 1, function: Field device side, Elec

Product Details

  • Cable designation
    Without label holder
  • Electrical connection 1, cable outlet
    Straight
  • Electrical connection for input 1, connection pattern
    00995384
  • Electrical connection 2, number of pins/wires
    5
  • DC operating voltage range
    0 V ... 60 V
  • Cable design
    5 x 1 mm²
  • Note on materials
    Free of copper and PTFE Free of phosphoric acid ester
  • Material of screw-type lock
    Brass, nickel-plated
  • Explosion prevention and protection
    Observe the information on the certificate Zone 22 (ATEX)
  • Electrical connection 1, connection type
    Socket
  • Electrical connection 1, type of mounting
    Screw-type lock
  • Electrical connection 2, connection type
    Plug
  • Electrical connection 2, type of mounting
    Screw-type lock
  • Surge resistance
    1.5 kV
  • Bending radius, fixed cable installation
    21 mm
  • Cable diameter
    7 mm
  • Ambient temperature
    -25 °C ... 80 °C
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Material of cable sheath
    TPE-U(PUR)
  • Type code
    NEBU
  • Product weight
    295 g
  • Electrical connection 1, number of pins/wires
    5
  • Electrical connection 2, function
    Control side
  • Electrical connection 2, connection technology
    M12x1 A-coded as per EN 61076-2-101
  • Operating voltage range AC
    0 V ... 60 V
  • Cable characteristic
    Suitable for energy chains
  • Cable diameter tolerance
    ± 0.1 mm
  • Degree of protection
    IP65 IP69K
  • CE marking (see declaration of conformity)
    As per EU low voltage directive As per EU RoHS directive
  • Housing material
    TPE-U(PUR)
  • Insulating sheath material
    PP
  • Conforms to standard
    EN 61076-2-101
  • Electrical connection 1, design
    Round
  • Electrical connection 1, occupied pins/wires
    5
  • Electrical connection 2, cable outlet
    Straight
  • Electrical connection 2, connection pattern
    00995383
  • Cable length
    10 m
  • Bending radius, flexible cable installation
    71 mm
  • Note on degree of protection
    In mounted state
  • Ambient temperature with flexible cable installation
    -5 °C ... 80 °C
  • Color cable sheath
    Gray
  • Seals material
    NBR
  • Electrical connection 1, function
    Field device end
  • Electrical connection 1, connection technology
    M12x1 A-coded as per EN 61076-2-101
  • Electrical connection 2, design
    Round
  • Electrical connection 2, occupied pins/wires
    5
  • Current rating at 40°C
    4 A
  • Connector cable test conditions
    Flexural strength: as per Festo standard Cable chain: 5 million cycles, bending radius 75 mm
  • Nominal conductor cross section
    1 mm²
  • Special features
    Oil-resistant
  • Contamination level
    3
  • Housing colour
    Black
  • Material of pin contacts
    Copper alloy, gold-plated

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
