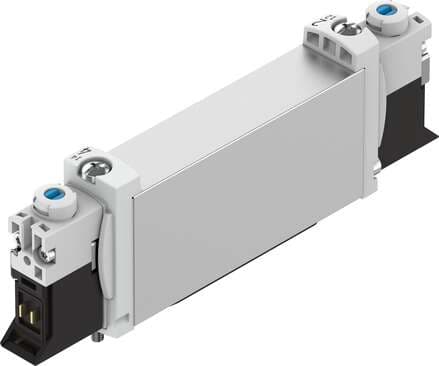

574378 Festo Directional Control Valves

Product Details

• Operating pressure
  -0.9 bar ... 10 bar
• Actuation type
  Electrical
• Design
  Piston gate valve
• Type code
  VUVG
• Symbol
  00992947
• Suitability for vacuum
  yes
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Electrical connection
  Via electrical sub-base
• Valve function
  2x3/2, open/closed, monostable
• Standard nominal flow rate
  410 l/min ... 450 l/min
• Exhaust air function
  With flow control option
• Manual override
  Detenting Covered
• Pilot pressure
  3 bar ... 8 bar
• Coil characteristics
  24 V DC: 1.0 W 24 V DC: low-current phase 0.3 W, high-current phase 1.0 W
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Temperature of medium
  -5 °C ... 60 °C
• Ambient temperature
  -5 °C ... 60 °C
• Lap
  Overlap
• Valve size
  14 mm
Reset method
Mechanical spring
Certification
RCM compliance mark c UL us - Recognized (OL)
Sealing principle
Soft
Max. positive test pulse with 0 signal
700 µs
Permissible voltage fluctuations
+/- 10 %
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Note on materials
RoHS-compliant
Pilot pressure MPa
0.3 MPa ... 0.8 MPa
Operating voltage
24V DC
Degree of protection
IP40 With plug socket
Mounting position
Any
Pilot air supply port
External
Switching time off
18 ms
Max. negative test pulse on 1 signal
900 µs
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Type of mounting
On terminal strip
Housing material
Wrought aluminum alloy
Pneumatic working port
Flange
Nominal width
4.3 mm
Type of control
Pilot-controlled
On switching time
12 ms
Duty cycle
100%
Restricted ambient and media temperature
-5 - 50 °C Without holding power reduction
Product weight
80 g
Seals material
HNBR NBR
