574351 Festo Directional Control Valves

574351 on Powermatic Associates
Festo

Part#:574351

Manufacturer:Festo

Alt. Part#:VUVG-L10-M52-MT-M5-1P3

Product Lifecycle:Active

Get a quick Quote!

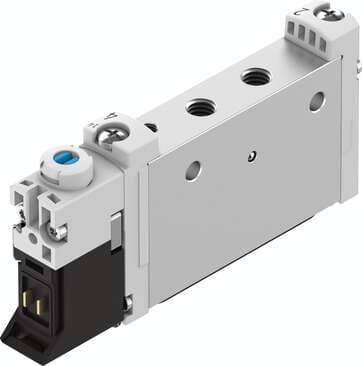

solenoid valve VUVG-L10-M52-MT-M5-1P3 Valve function: 5/2 monostable, Type of actuation: electrical, Valve size: 10 mm, Standard nominal flow rate: 190 l/min, Operating pressure: 3 - 8 bar

About the manufacturer: Festo is one of the manufacturers that offers Directional Control Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 574351 Festo price in the box on the right side or send a quick quote.

Product Details

  • Lap
    Overlap
  • Pilot pressure MPa
    0.3 MPa ... 0.8 MPa
  • Standard nominal flow rate
    190 l/min
  • Certification
    RCM compliance mark c UL us - Recognized (OL)
  • Sealing principle
    Soft
  • Manual override
    Detenting Covered
  • Suitability for vacuum
    no
  • Permissible voltage fluctuations
    +/- 10 %
  • Vibration resistance
    Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
  • Ambient temperature
    -5 °C ... 60 °C
  • Type of mounting
    Optionally: With through-hole
  • Seals material
    HNBR NBR
  • Valve function
    5/2, monostable
  • Pneumatic working port
    M5
  • Operating voltage
    24V DC
  • Mounting position
    Any
  • Pilot pressure
    3 bar ... 8 bar
  • Duty cycle
    100%
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Restricted ambient and media temperature
    -5 - 50 °C Without holding power reduction
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Pneumatic connection 2
    M5
  • Operating pressure
    3 bar ... 8 bar
  • Valve size
    10 mm
  • Degree of protection
    IP40 With plug socket
  • Exhaust air function
    With flow control option
  • Symbol
    00991003
  • Max. negative test pulse on 1 signal
    900 µs
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Product weight
    44 g
  • Pneumatic connection 5
    M5
  • Design
    Piston gate valve
  • Nominal width
    2.2 mm
  • Pilot air supply port
    Internal
  • On switching time
    8 ms
  • Max. positive test pulse with 0 signal
    700 µs
  • Temperature of medium
    -5 °C ... 60 °C
  • Pneumatic connection 1
    M5
  • Note on materials
    RoHS-compliant
  • Actuation type
    Electrical
  • Reset method
    Mechanical spring
  • Type code
    VUVG
  • Type of control
    Pilot-controlled
  • Switching time off
    24 ms
  • Coil characteristics
    24 V DC: 1.0 W 24 V DC: low-current phase 0.3 W, high-current phase 1.0 W
  • Shock resistance
    Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
  • Electrical connection
    Via electrical sub-base
  • Pneumatic connection 4
    M5
  • Housing material
    Wrought aluminum alloy

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 574351 Specs

574351 574351 DataSheet.pdf
