GVAN11 Schneider Electric Industrial Automation Components

GVAN11 on Powermatic Associates
Schneider Electric

Part#:GVAN11

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

53 in stock

Apr 3, 2025

Product description

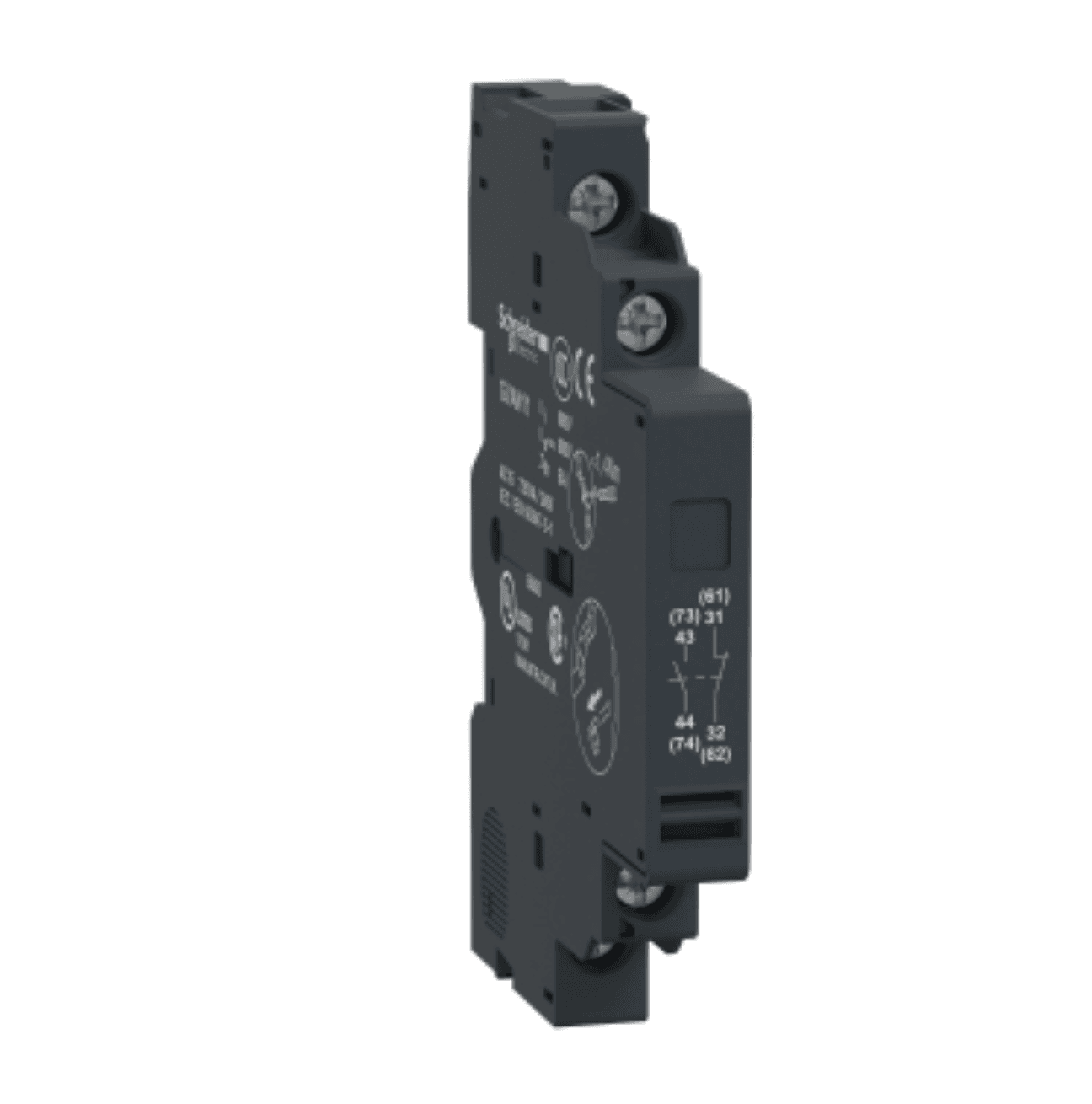

Schneider Electric GVAN11 is an auxiliary contact designed for use with the GV3 range, providing breaker status indication (Open/Closed). It features a rated insulation voltage (Ui) of 690 V, equipped with 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts. The GVAN11 is engineered for mechanical durability of up to 100,000 operations at no load and maintains the same level of electrical durability with load, ensuring a total of 100,000 operations.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of GVAN11 on Powermatic Associates is $35.35. Order now.
