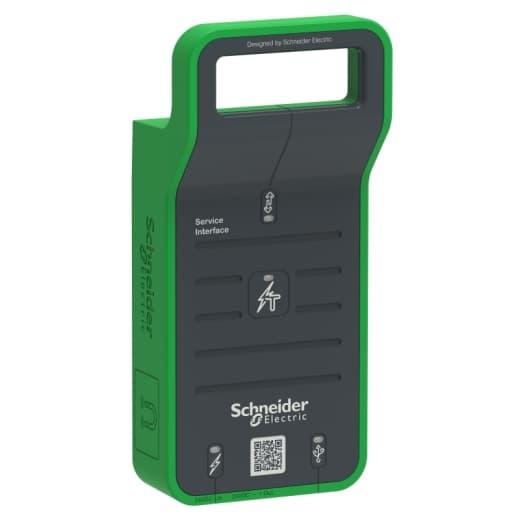

LV485500 Schneider Electric Industrial Automation Components

LV485500 on Powermatic Associates
Schneider Electric

Part#:LV485500

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric - LV485500

Product Details

  • Range Compatibility
    MasterPact NT Masterpact NW EasyPact CVS EasyPact MVS PowerPact Multistandard ComPact NSX ComPact NSXm ComPact NS630b...1600 ComPact NS1600b...3200 Enerlin'X IO Enerlin'X IFE Enerlin'X IFM Enerli
  • Standards
    IEC 61010-1 IEC 61010-2-030 UL 61010-1 CSA C22.2 No 61010-1 EN 60068-2-32
  • Electromagnetic Compatibility
    Conducted RF disturbances conforming to EN 55011 Emission tests conforming to EN 55032 Immunity for industrial environments conforming to IEC 61000-6-2 Emission standard for industrial environments conforming to IEC 61000-6-4 Limits fo
  • Provided Equipment
    1 Power supply 1 USB cable 3 test cables
  • Product Certifications
    CE UL
  • Net Weight
    6.17 lb(US) (2.8 kg)
  • Width
    17.76 in (451 mm)
  • Depth
    14.09 in (358 mm)
  • Height
    4.17 in (106 mm)
  • IP Degree Of Protection
    IP20
  • Trip Time Measurement
    0...7500 s +/- 0.1 %
  • Overvoltage Category
    II
  • [Ue] Rated Operational Voltage
    115/230 V AC +/- 10 % 47...63 Hz
  • [Uimp] Rated Impulse Withstand Voltage
    12 kV
  • Product Or Component Type
    Testing kit
  • Accessory / Separate Part Category
    Maintenance accessory

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LV485500 on Powermatic Associates is $15,000.00. Order now.
