559648 Festo Directional Control Valves

559648 on Powermatic Associates
Festo

Part#:559648

Alt. Part#:CPV14-M1H-2X3-OLS-K-1/8

Manufacturer:Festo

Category:Directional Control Valves

Product Lifecycle:Active

Product description

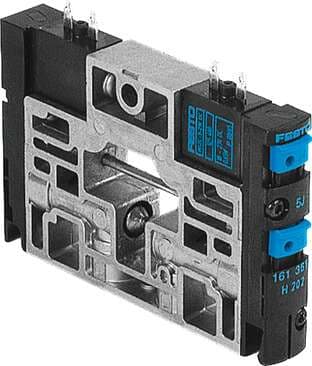

solenoid valve CPV14-M1H-2X3-OLS-K-1/8 For valve terminal CPV. The valve housing contains two 3/2-way valves, both of which are normally open. Valve function: 3/2 open, monostable, Type of actuation: electrical, Valve size: 14 mm, Standard nominal flow ra

Product Details

  • Actuation type
    Electrical
  • Reset method
    Pneumatic spring
  • Mounting position
    Any
  • b-value
    0.42
  • Duty cycle
    100% in combination with holding current reduction
  • Vibration resistance
    Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
  • Ambient temperature
    -5 °C ... 50 °C
  • Pneumatic connection 1
    Common port with pressure separation
  • Pneumatic port 3/5 combined
    Common port
  • Lap
    Overlap
  • Pneumatic working port
    G1/8
  • Degree of protection
    IP65
  • Sealing principle
    Soft
  • Pilot air supply port
    External Internal
  • C value
    3.2 l/sbar
  • Electrical power consumption
    0.65 W
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Temperature of medium
    -5 °C ... 50 °C
  • Pilot air port 12/14
    Common port
  • Note on materials
    RoHS-compliant
  • Housing material
    Die-cast aluminum Steel
  • Standard nominal flow rate
    800 l/min
  • Design
    Piston gate valve
  • Type of control
    Pilot-controlled
  • Symbol
    00991811
  • Max. positive test pulse with 0 signal
    1400 µs
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Shock resistance
    Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
  • Product weight
    120 g
  • Pneumatic connection 2
    G1/8
  • Seals material
    HNBR NBR
  • Valve function
    3/2, open, monostable
  • Valve size
    14 mm
  • Operating voltage
    24V DC
  • Exhaust air function
    Without flow control option
  • Type code
    CPV14
  • Flow direction
    Non-reversible
  • On switching time
    24 ms
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Type of mounting
    With through-hole
  • Pilot exhaust air port 82/84
    Common port
  • Operating pressure
    -0.9 bar ... 10 bar
  • Nominal width
    6 mm
  • Manual override
    Detenting Non-detenting
  • Pilot pressure
    3 bar ... 8 bar
  • Switching time off
    30 ms
  • Max. negative test pulse on 1 signal
    400 µs
  • Storage temperature
    -20 °C ... 40 °C
  • Pneumatic connection 11
    Common port with pressure separation
  • Pneumatic connection 4
    G1/8

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

559648 Related Documents

559648 DataSheet.pdf
