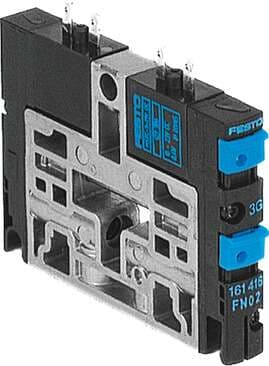

559646 Festo Directional Control Valves

Product Details

• Lap
  Overlap
• Pneumatic working port
  M7
• Sealing principle
  Soft
• Pilot air supply port
  External Internal
• b-value
  0.35
• On switching time
  15 ms
• Max. negative test pulse on 1 signal
  700 µs
• Storage temperature
  -20 °C ... 40 °C
• Product weight
  70 g
• Pneumatic connection 1
  Common port with pressure separation
• Seals material
  HNBR NBR
• Actuation type
  Electrical
• Operating voltage
  24V DC
• Degree of protection
  IP65
• Mounting position
  Any
• Pilot pressure
  3 bar ... 8 bar
• Electrical power consumption
  0.46 W
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Temperature of medium
  -5 °C ... 50 °C
• Type of mounting
  With through-hole
Pneumatic connection 11
Common port with pressure separation
Pneumatic connection 2
M7
Valve function
2x2/2, open/closed, monostable
Standard nominal flow rate
400 l/min
Design
Piston gate valve
Type code
CPV10
Duty cycle
100% in combination with holding current reduction
Pilot air port 12/14
Common port
Pneumatic connection 4
M7
Housing material
Die-cast aluminum Steel
Valve size
10 mm
Operating pressure
-0.9 bar ... 10 bar
Nominal width
4 mm
Manual override
Detenting Non-detenting
Flow direction
Non-reversible
Switching time off
17 ms
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Pilot exhaust air port 82/84
Common port
Note on materials
RoHS-compliant
Reset method
Pneumatic spring
Exhaust air function
Without flow control option
Type of control
Pilot-controlled
Symbol
00991802
C value
1.6 l/sbar
Max. positive test pulse with 0 signal
1400 µs
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Ambient temperature
-5 °C ... 50 °C
Pneumatic port 3/5 combined
Common port
