559644 Festo Directional Control Valves

559644 on Powermatic Associates
Festo

Part#:559644

Alt. Part#:CPV10-M1H-5JS-K-M7

Manufacturer:Festo

Category:Directional Control Valves

Product Lifecycle:Active

Product description

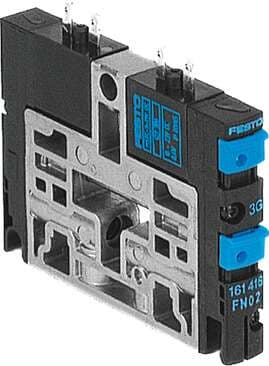

solenoid valve CPV10-M1H-5JS-K-M7 For valve terminal CPV. Valve function: 5/2 bistable, Type of actuation: electrical, Valve size: 10 mm, Standard nominal flow rate: 400 l/min, Operating pressure: -0,9 - 10 bar

Product Details

  • Mounting position
    Any
  • Valve size
    10 mm
  • Operating pressure
    -0.9 bar ... 10 bar
  • Exhaust air function
    Without flow control option
  • Operating voltage
    24V DC
  • Degree of protection
    IP65
  • Type code
    CPV10
  • Type of control
    Pilot-controlled
  • Electrical power consumption
    0.46 W
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Temperature of medium
    -5 °C ... 50 °C
  • Pilot exhaust air port 82/84
    Common port
  • Pneumatic connection 4
    M7
  • Housing material
    Die-cast aluminum Steel
  • Actuation type
    Electrical
  • Pneumatic working port
    M7
  • Nominal width
    4 mm
  • Pilot air supply port
    External Internal
  • Changeover time
    10 ms
  • Duty cycle
    100% in combination with holding current reduction
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Ambient temperature
    -5 °C ... 50 °C
  • Pneumatic connection 2
    M7
  • Note on materials
    RoHS-compliant
  • Valve function
    5/2, bistable
  • Standard nominal flow rate
    400 l/min
  • Sealing principle
    Soft
  • Pilot pressure
    3 bar ... 8 bar
  • b-value
    0.4
  • Max. positive test pulse with 0 signal
    1400 µs
  • Storage temperature
    -20 °C ... 40 °C
  • Pilot air port 12/14
    Common port
  • Pneumatic connection 1
    Common port with pressure separation
  • Seals material
    HNBR NBR
  • Lap
    Overlap
  • Design
    Piston gate valve
  • Manual override
    Detenting Non-detenting
  • Flow direction
    Non-reversible
  • Max. negative test pulse on 1 signal
    700 µs
  • Product weight
    70 g
  • Pneumatic connection 11
    Common port with pressure separation
  • Symbol
    00991683
  • C value
    1.6 l/sbar
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Type of mounting
    With through-hole
  • Pneumatic port 3/5 combined
    Common port

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

559644 Related Documents

559644 DataSheet.pdf

Similar products from: Festo Directional Control Valves
