559653 Festo Directional Control Valves
Part#:559653
Alt. Part#:CPV14-M1H-2OLS-2GLS-K-1/8
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description

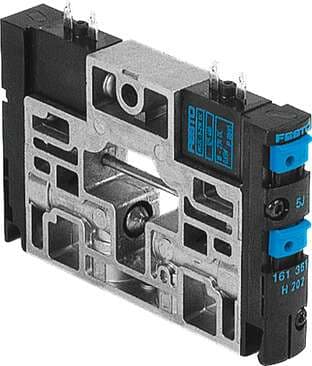

solenoid valve CPV14-M1H-2OLS-2GLS-K-1/8 For valve terminal CPV. The valve housing contains two 2/2-way valves, one of which is normally open, the other is normally closed. Valve function: 2x2/2 open/closed, monostable, Type of actuation: electrical, Valv
Product Details
- Reset method Pneumatic spring
- Exhaust air function Without flow control option
- Type of control Pilot-controlled
- On switching time 13 ms
- Actuation type Electrical
- Operating pressure -0.9 bar ... 10 bar
- Pneumatic working port G1/8
- Sealing principle Soft
- Pilot air supply port External Internal
- Flow direction Non-reversible
- C value 3.2 l/sbar
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Product weight 120 g
- Pneumatic connection 1 Common port with pressure separation
- Pneumatic port 3/5 combined Common port
- Pneumatic connection 4 G1/8
- Valve size 14 mm
- Design Piston gate valve
- Degree of protection IP65
- Mounting position Any
- Symbol 00991802
- Switching time off 16 ms
- Max. negative test pulse on 1 signal 400 µs
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Temperature of medium -5 °C ... 50 °C
- Pilot air port 12/14 Common port
- Pneumatic connection 11 Common port with pressure separation
- Seals material HNBR NBR
- Lap Overlap
- Operating voltage 24V DC
- Type code CPV14
- Pilot pressure 3 bar ... 8 bar
- Max. positive test pulse with 0 signal 1400 µs
- Storage temperature -20 °C ... 40 °C
- Type of mounting With through-hole
- Valve function 2x2/2, open/closed, monostable
- Standard nominal flow rate 800 l/min
- Nominal width 6 mm
- Manual override Detenting Non-detenting
- b-value 0.37
- Duty cycle 100% in combination with holding current reduction
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Pilot exhaust air port 82/84 Common port
- Note on materials RoHS-compliant
- Electrical power consumption 0.65 W
- Ambient temperature -5 °C ... 50 °C
- Pneumatic connection 2 G1/8
- Housing material Die-cast aluminum Steel
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
