540822 Festo Directional Control Valves
Part#:540822
Alt. Part#:MDH-5/3G-D-3-M12D-C
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description

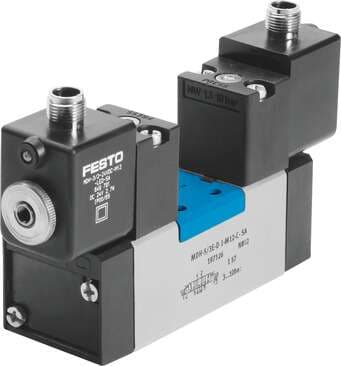

solenoid valve MDH-5/3G-D-3-M12D-C With M12 plug connection. Valve function: 5/3 closed, Type of actuation: electrical, Width: 65 mm, Standard nominal flow rate: 4100 l/min, Operating pressure: 3 - 10 bar
Product Details
- Duty cycle 100%
- Valve function 5/3, closed
- Standard nominal flow rate 4100 l/min
- Degree of protection IP65
- Reset method Mechanical spring
- ISO code 356
- On switching time 35 ms
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Ambient temperature -10 °C ... 50 °C
- Pneumatic connection 1 Sub-base, size 3 as per ISO 5599-1
- Note on materials RoHS-compliant
- Lap Overlap
- Operating voltage 24V DC
- Width dimension 71 mm
- Sealing principle Soft
- Manual override Non-detenting
- Symbol 00991080
- Noise level 85 dB(A)
- Type of mounting On sub-base With through-hole and screw
- Pneumatic connection 2 Sub-base, size 3 as per ISO 5599-1
- Width 65 mm
- Operating pressure 3 bar ... 10 bar
- Exhaust air function With flow control option
- Flow direction Non-reversible
- Switching time off 79 ms
- Permissible voltage fluctuations +/- 10 %
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Product weight 1120 g
- Pilot exhaust air port 82 M5
- Pneumatic connection 3 Sub-base, size 3 as per ISO 5599-1
- Pneumatic connection 5 Sub-base, size 3 as per ISO 5599-1
- Design Piston gate valve
- Type code MDH
- Conforms to standard ISO 5599-1
- Pilot air supply port Internal
- Max. negative test pulse on 1 signal 4900 µs
- Vibration resistance Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
- Temperature of medium -10 °C ... 50 °C
- Pilot exhaust air port 84 M5
- Seals material HNBR NBR
- Actuation type Electrical
- Pneumatic working port Sub-base, size 3 as per ISO 5599-1 G1/2
- Nominal width 14.5 mm
- Mounting position Any
- Type of control Pilot-controlled
- Max. positive test pulse with 0 signal 3800 µs
- Coil characteristics 24 V DC: 2.7 W
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Electrical connection M12x1
- Pneumatic connection 4 Sub-base, size 3 as per ISO 5599-1
- Housing material Die-cast aluminum
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
