Part#:540814

Alt. Part#:MDH-5/3E-D-2-M12D-C

Manufacturer:Festo

Category:Directional Control Valves

Product Lifecycle:Active

Product description

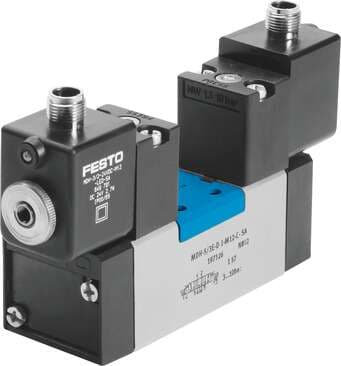

solenoid valve MDH-5/3E-D-2-M12D-C With M12 plug connection. Valve function: 5/3 exhausted, Type of actuation: electrical, Width: 54 mm, Standard nominal flow rate: 2300 l/min, Operating pressure: 3 - 10 bar

Product Details

  • Reset method
    Mechanical spring
  • Type code
    MDH
  • Manual override
    Non-detenting
  • Duty cycle
    100%
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Pilot exhaust air port 84
    M5
  • Note on materials
    RoHS-compliant
  • Housing material
    Die-cast aluminum
  • Valve function
    5/3, exhausted
  • Operating pressure
    3 bar ... 10 bar
  • Design
    Piston gate valve
  • Exhaust air function
    With flow control option
  • Flow direction
    Non-reversible
  • On switching time
    35 ms
  • Permissible voltage fluctuations
    +/- 10 %
  • Temperature of medium
    -10 °C ... 50 °C
  • Type of mounting
    On sub-base With through-hole and screw
  • Pneumatic connection 3
    Sub-base, size 2 as per ISO 5599-1
  • Lap
    Overlap
  • Operating voltage
    24V DC
  • Width dimension
    56 mm
  • Mounting position
    Any
  • ISO code
    257
  • Symbol
    00991082
  • Max. positive test pulse with 0 signal
    3800 µs
  • Vibration resistance
    Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
  • Noise level
    85 dB(A)
  • Product weight
    1000 g
  • Electrical connection
    M12x1
  • Pneumatic connection 5
    Sub-base, size 2 as per ISO 5599-1
  • Width
    54 mm
  • Pneumatic working port
    Sub-base, size 2 as per ISO 5599-1 G3/8
  • Nominal width
    11.5 mm
  • Sealing principle
    Soft
  • Pilot air supply port
    Internal
  • Switching time off
    70 ms
  • Coil characteristics
    24 V DC: 2.7 W
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Pilot exhaust air port 82
    M5
  • Pneumatic connection 2
    Sub-base, size 2 as per ISO 5599-1
  • Seals material
    HNBR NBR
  • Actuation type
    Electrical
  • Standard nominal flow rate
    2300 l/min
  • Degree of protection
    IP65
  • Conforms to standard
    ISO 5599-1
  • Type of control
    Pilot-controlled
  • Max. negative test pulse on 1 signal
    4900 µs
  • Shock resistance
    Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
  • Ambient temperature
    -10 °C ... 50 °C
  • Pneumatic connection 1
    Sub-base, size 2 as per ISO 5599-1
  • Pneumatic connection 4
    Sub-base, size 2 as per ISO 5599-1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

540814 Related Documents

540814 DataSheet.pdf

Similar products from: Festo Directional Control Valves
