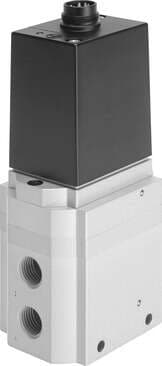

164332 Festo Proportional Valves

Product Details

• Nominal width pressurization
  11 mm
• Reference voltage
  10 V
• Temperature of medium
  0 °C ... 60 °C
• Type of mounting
  With through-hole
• Type code
  MPPE
• Sealing principle
  Soft
• On switching time
  170 ms
• Residual ripple
  10 %
• Certification
  RCM compliance mark
• Note on materials
  RoHS-compliant
• Actuation type
  Electrical
• Safety instructions
  MPPE-B safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
• Inlet pressure 1
  11 bar ... 12 bar
• Max. pressure hysteresis
  0.05 bar
• Setpoint/actual values
  Optionally: Current type 4–20 mA
• Degree of protection
  IP65
• Pneumatic connection 1
  G1/2
• Housing material
  Wrought aluminum alloy
• Exhaust nominal width
  12 mm
• Mounting position
  Any
Symbol
00995304
Pressure regulation range
0 bar ... 10 bar
DC operating voltage range
18 V ... 30 V
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Ambient temperature
0 °C ... 50 °C
Pneumatic connection 2
G1/2
Diaphragm material
NBR
Design
Pilot-controlled piston control valve
Operating pressure
0 bar ... 10 bar
Switching time off
535 ms
CE marking (see declaration of conformity)
As per EU EMC directive
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Product weight
2400 g
Electrical connection
8-pin Round design
Pneumatic connection 3
G1/2
