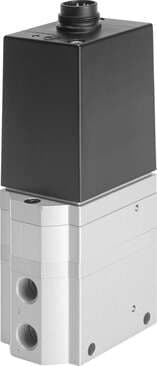

164316 Festo Proportional Valves

Product Details

• Nominal width pressurization
  5 mm
• Actuation type
  Electrical
• Short-circuit protection
  For all electrical connections
• Switching time off
  250 ms
• Residual ripple
  10 %
• CE marking (see declaration of conformity)
  As per EU EMC directive
• Product weight
  710 g
• Pneumatic connection 3
  G1/8
• Operating pressure
  ≤ 4.5 bar
• On switching time
  140 ms
• Setpoint/actual values
  Current type 4–20 mA
• Degree of protection
  IP65
• Pneumatic connection 1
  G1/8
• Housing material
  Wrought aluminum alloy
• KC characters
  KC EMC
• Mounting position
  Any
• Safety instructions
  MPPE-B safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
• Inlet pressure 1
  3.5 bar ... 4.5 bar
• Reference voltage
  10 V
• Electrical connection
  8-pin Round design
Pneumatic connection 2
G1/8
Type code
MPPE
Design
Pilot-controlled piston control valve
Reverse polarity protection
for all electrical connections
Pressure regulation range
0 bar ... 2.5 bar
DC operating voltage range
18 V ... 30 V
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Temperature of medium
0 °C ... 60 °C
Ambient temperature
0 °C ... 50 °C
Type of mounting
With through-hole
Diaphragm material
NBR
Exhaust nominal width
5 mm
Sealing principle
Soft
Symbol
00995303
Valve function
3-way proportional pressure control valve closed
Max. pressure hysteresis
0.04 bar
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Certification
RCM compliance mark
Note on materials
RoHS-compliant
