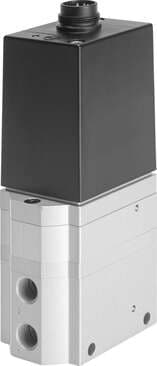

164330 Festo Proportional Valves

Product Details

• Nominal width pressurization
  5 mm
• Sealing principle
  Soft
• Safety instructions
  MPPE-B safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
• Operating pressure
  0 bar ... 10 bar
• Reference voltage
  10 V
• Type code
  MPPE
• Symbol
  00995305
• Pressure regulation range
  0 bar ... 10 bar
• Switching time off
  220 ms
• Degree of protection
  IP65
• Product weight
  710 g
• Diaphragm material
  NBR
• Mounting position
  Any
• Max. pressure hysteresis
  0.05 bar
• DC operating voltage range
  18 V ... 30 V
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
• Ambient temperature
  0 °C ... 50 °C
• Pneumatic connection 1
  G1/8
• Note on materials
  RoHS-compliant
• Actuation type
  Electrical
Design
Pilot-controlled piston control valve
Residual ripple
10 %
CE marking (see declaration of conformity)
As per EU EMC directive
Temperature of medium
0 °C ... 60 °C
Electrical connection
8-pin Round design
Pneumatic connection 3
G1/8
Exhaust nominal width
5 mm
Inlet pressure 1
11 bar ... 12 bar
On switching time
140 ms
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Type of mounting
With through-hole
Setpoint/actual values
Optionally: Current type 4–20 mA
Certification
RCM compliance mark
Pneumatic connection 2
G1/8
Housing material
Wrought aluminum alloy
