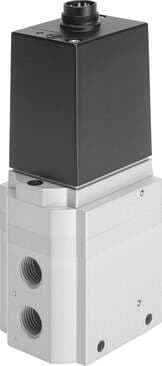

164317 Festo Proportional Valves

Product Details

• Nominal width pressurization
  7 mm
• Sealing principle
  Soft
• Valve function
  3-way proportional pressure control valve closed
• Inlet pressure 1
  3.5 bar ... 4.5 bar
• Residual ripple
  10 %
• CE marking (see declaration of conformity)
  As per EU EMC directive
• Certification
  RCM compliance mark
• Pneumatic connection 3
  G1/4
• KC characters
  KC EMC
• Actuation type
  Electrical
• Design
  Pilot-controlled piston control valve
• Safety instructions
  MPPE-B safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
• Pressure regulation range
  0 bar ... 2.5 bar
• Reference voltage
  10 V
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
• Product weight
  920 g
• Pneumatic connection 2
  G¼
• Diaphragm material
  NBR
• Mounting position
  Any
• Operating pressure
  ≤ 4.5 bar
Switching time off
260 ms
Temperature of medium
0 °C ... 60 °C
Degree of protection
IP65
Type of mounting
With through-hole
Housing material
Wrought aluminum alloy
Reverse polarity protection
for all electrical connections
Max. pressure hysteresis
0.04 bar
Setpoint/actual values
Voltage type 0 - 10 V
Ambient temperature
0 °C ... 50 °C
Note on materials
RoHS-compliant
Exhaust nominal width
7 mm
Type code
MPPE
Short-circuit protection
For all electrical connections
Symbol
00995303
On switching time
150 ms
DC operating voltage range
18 V ... 30 V
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Electrical connection
8-pin Round design
Pneumatic connection 1
G1/4
