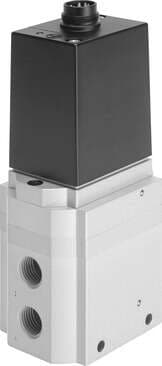

164320 Festo Proportional Valves

Product Details

• KC characters
  KC EMC
• Actuation type
  Electrical
• Symbol
  00995303
• Pressure regulation range
  0 bar ... 2.5 bar
• DC operating voltage range
  18 V ... 30 V
• CE marking (see declaration of conformity)
  As per EU EMC directive
• Ambient temperature
  0 °C ... 50 °C
• Pneumatic connection 1
  G1/2
• Diaphragm material
  NBR
• Type code
  MPPE
• Safety instructions
  MPPE-B safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
• Operating pressure
  ≤ 4.5 bar
• Switching time off
  205 ms
• Residual ripple
  10 %
• Setpoint/actual values
  Current type 4–20 mA
• Certification
  RCM compliance mark
• Pneumatic connection 2
  G1/2
• Note on materials
  RoHS-compliant
• Sealing principle
  Soft
• Reverse polarity protection
  for all electrical connections
Max. pressure hysteresis
0.04 bar
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Electrical connection
8-pin Round design
Exhaust nominal width
12 mm
Design
Pilot-controlled piston control valve
Short-circuit protection
For all electrical connections
On switching time
85 ms
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Temperature of medium
0 °C ... 60 °C
Product weight
2400 g
Pneumatic connection 3
G1/2
Housing material
Wrought aluminum alloy
Nominal width pressurization
11 mm
Mounting position
Any
Valve function
3-way proportional pressure control valve closed
Inlet pressure 1
3.5 bar ... 4.5 bar
Reference voltage
10 V
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Degree of protection
IP65
Type of mounting
With through-hole
