164315 Festo Proportional Valves

164315 on Powermatic Associates
Festo

Part#:164315

Manufacturer:Festo

Alt. Part#:MPPE-3-1/8-2,5-010-B

Product Lifecycle:Active

Get a quick Quote!

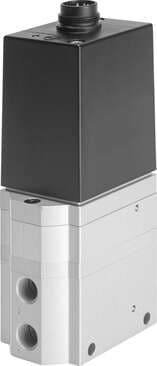

proportional pressure regulator MPPE-3-1/8-2,5-010-B Nominal diameter, pressurisation: 5 mm, Nominal diameter, exhaust: 5 mm, Type of actuation: electrical, Sealing principle: soft, Assembly position: Any

About the manufacturer: Festo is one of the manufacturers that offers Proportional Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 164315 Festo price in the box on the right side or send a quick quote.

Product Details

  • Type code
    MPPE
  • Short-circuit protection
    For all electrical connections
  • Reverse polarity protection
    for all electrical connections
  • On switching time
    140 ms
  • DC operating voltage range
    18 V ... 30 V
  • Temperature of medium
    0 °C ... 60 °C
  • Certification
    RCM compliance mark
  • Pneumatic connection 1
    G1/8
  • Valve function
    3-way proportional pressure control valve closed
  • Max. pressure hysteresis
    0.04 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Electrical connection
    8-pin Round design
  • Housing material
    Wrought aluminum alloy
  • Exhaust nominal width
    5 mm
  • Actuation type
    Electrical
  • Symbol
    00995303
  • Switching time off
    250 ms
  • Residual ripple
    10 %
  • Setpoint/actual values
    Voltage type 0 - 10 V
  • Product weight
    710 g
  • Type of mounting
    With through-hole
  • Diaphragm material
    NBR
  • Nominal width pressurization
    5 mm
  • Sealing principle
    Soft
  • Safety instructions
    MPPE-B safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
  • Inlet pressure 1
    3.5 bar ... 4.5 bar
  • Reference voltage
    10 V
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Ambient temperature
    0 °C ... 50 °C
  • Pneumatic connection 3
    G1/8
  • KC characters
    KC EMC
  • Mounting position
    Any
  • Design
    Pilot-controlled piston control valve
  • Operating pressure
    ≤ 4.5 bar
  • Pressure regulation range
    0 bar ... 2.5 bar
  • CE marking (see declaration of conformity)
    As per EU EMC directive
  • Degree of protection
    IP65
  • Pneumatic connection 2
    G1/8
  • Note on materials
    RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 164315 Specs

164315 164315 DataSheet.pdf
