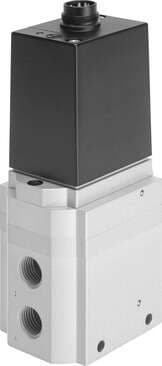

164319 Festo Proportional Valves

Product Details

• Nominal width pressurization
  11 mm
• Sealing principle
  Soft
• Operating pressure
  ≤ 4.5 bar
• On switching time
  85 ms
• Setpoint/actual values
  Voltage type 0 - 10 V
• Temperature of medium
  0 °C ... 60 °C
• Electrical connection
  8-pin Round design
• Note on materials
  RoHS-compliant
• KC characters
  KC EMC
• Actuation type
  Electrical
• Short-circuit protection
  For all electrical connections
• Reverse polarity protection
  for all electrical connections
• Inlet pressure 1
  3.5 bar ... 4.5 bar
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
• CE marking (see declaration of conformity)
  As per EU EMC directive
• Certification
  RCM compliance mark
• Diaphragm material
  NBR
• Type code
  MPPE
• Design
  Pilot-controlled piston control valve
• Pressure regulation range
  0 bar ... 2.5 bar
Max. pressure hysteresis
0.04 bar
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Ambient temperature
0 °C ... 50 °C
Pneumatic connection 2
G1/2
Housing material
Wrought aluminum alloy
Exhaust nominal width
12 mm
Valve function
3-way proportional pressure control valve closed
Switching time off
205 ms
Residual ripple
10 %
Degree of protection
IP65
Type of mounting
With through-hole
Pneumatic connection 1
G1/2
Mounting position
Any
Safety instructions
MPPE-B safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
Symbol
00995303
DC operating voltage range
18 V ... 30 V
Reference voltage
10 V
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Product weight
2400 g
Pneumatic connection 3
G1/2
