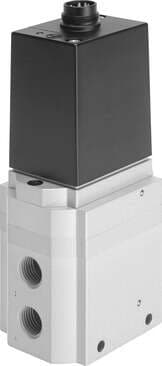

164318 Festo Proportional Valves

Product Details

• Nominal width pressurization
  7 mm
• Sealing principle
  Soft
• Short-circuit protection
  For all electrical connections
• Valve function
  3-way proportional pressure control valve closed
• Inlet pressure 1
  3.5 bar ... 4.5 bar
• Switching time off
  260 ms
• CE marking (see declaration of conformity)
  As per EU EMC directive
• Degree of protection
  IP65
• Pneumatic connection 3
  G1/4
• KC characters
  KC EMC
• Type code
  MPPE
• Mounting position
  Any
• Reverse polarity protection
  for all electrical connections
• DC operating voltage range
  18 V ... 30 V
• On switching time
  150 ms
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Ambient temperature
  0 °C ... 50 °C
• Product weight
  920 g
• Housing material
  Wrought aluminum alloy
• Exhaust nominal width
  7 mm
Design
Pilot-controlled piston control valve
Pressure regulation range
0 bar ... 2.5 bar
Setpoint/actual values
Current type 4–20 mA
Temperature of medium
0 °C ... 60 °C
Certification
RCM compliance mark
Pneumatic connection 2
G¼
Safety instructions
MPPE-B safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
Operating pressure
≤ 4.5 bar
Max. pressure hysteresis
0.04 bar
Residual ripple
10 %
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Type of mounting
With through-hole
Note on materials
RoHS-compliant
Actuation type
Electrical
Symbol
00995303
Reference voltage
10 V
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Electrical connection
8-pin Round design
Pneumatic connection 1
G1/4
Diaphragm material
NBR
