164331 Festo Proportional Valves

164331 on Powermatic Associates
Festo

Part#:164331

Alt. Part#:MPPE-3-1/4--B

Manufacturer:Festo

Category:Proportional Valves

Product Lifecycle:Active

Product description

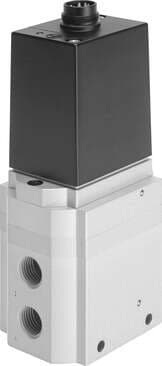

proportional pressure regulator MPPE-3-1/4--B Nominal diameter, pressurisation: 7 mm, Nominal diameter, exhaust: 7 mm, Type of actuation: electrical, Sealing principle: soft, Assembly position: Any

Product Details

  • Sealing principle
    Soft
  • Pneumatic connection 1
    G1/4
  • Nominal width pressurization
    7 mm
  • Actuation type
    Electrical
  • Pressure regulation range
    0 bar ... 10 bar
  • DC operating voltage range
    18 V ... 30 V
  • CE marking (see declaration of conformity)
    As per EU EMC directive
  • Exhaust nominal width
    7 mm
  • Design
    Pilot-controlled piston control valve
  • Max. pressure hysteresis
    0.05 bar
  • On switching time
    160 ms
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
  • Temperature of medium
    0 °C ... 60 °C
  • Product weight
    920 g
  • Pneumatic connection 2
    G¼
  • Type code
    MPPE
  • Operating pressure
    0 bar ... 10 bar
  • Reference voltage
    10 V
  • Ambient temperature
    0 °C ... 50 °C
  • Type of mounting
    With through-hole
  • Housing material
    Wrought aluminum alloy
  • Mounting position
    Any
  • Inlet pressure 1
    11 bar ... 12 bar
  • Switching time off
    280 ms
  • Setpoint/actual values
    Optionally: Current type 4–20 mA
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Certification
    RCM compliance mark
  • Diaphragm material
    NBR
  • Safety instructions
    MPPE-B safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
  • Symbol
    00995304
  • Residual ripple
    10 %
  • Degree of protection
    IP65
  • Electrical connection
    8-pin Round design
  • Pneumatic connection 3
    G1/4
  • Note on materials
    RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

164331 Related Documents

164331 DataSheet.pdf
