152837 Festo Proximity Sensors

152837 on Powermatic Associates
Festo

Part#:152837

Alt. Part#:SMTO-4U-NS-K-LED-24

Manufacturer:Festo

Category:Proximity Sensors

Product Lifecycle:Active

Product description

proximity sensor SMTO-4U-NS-K-LED-24 With light emitting diode and integrated protective circuit, without mounting kit. Design: Round, Authorisation: RCM Mark, CE mark (see declaration of conformity): to EU directive for EMC, Materials note: Free of coppe

Product Details

  • Symbol
    00991149
  • CE marking (see declaration of conformity)
    As per EU EMC directive
  • Measuring principle
    Magneto-inductive
  • Switching output
    NPN
  • Max. output current
    200 mA
  • Voltage drop
    2 V
  • Short-circuit protection
    Pulsed
  • Overload protection
    Available
  • Material of cable sheath
    PVC
  • Product weight
    70 g
  • Type code
    SMTO
  • Ambient temperature
    -25 °C ... 70 °C
  • Reproducibility of switching value
    +/- 0.1 mm
  • On time
    ≤ 5 ms
  • Residual current
    ≤ 0.01 mA
  • Reverse polarity protection
    for all electrical connections
  • Connection outlet orientation
    Longitudinal
  • Design
    Round
  • Certification
    RCM compliance mark
  • Note on materials
    Free of copper and PTFE
  • Switching element function
    N/O contact
  • Switch-off time
    ≤ 5 ms
  • Max. switching capacity DC
    6 W
  • DC operating voltage range
    10 V ... 30 V
  • Electrical connection
    3-wire Cable
  • Cable length
    2.5 m
  • Switching status indication
    LED yellow
  • Cable characteristic
    Standard
  • Max. tightening torque
    0.8 Nm
  • Type of mounting
    With accessories
  • Housing material
    PET
  • Ambient temperature with flexible cable installation
    -5 °C ... 70 °C
  • Degree of protection
    IP67

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

152837 Related Documents

152837 DataSheet.pdf

Similar products from: Festo Proximity Sensors

551369 on Powermatic Associates

551369

Festo

proximity sensor SME-10M-ZS-24V-E-2,5-L-OE Suitable for C-slot. Design: for round slot, Conforms to standard: EN 60947-5-2, Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): to EU directive for EMC, Special cha

2 in stock
551401 on Powermatic Associates

551401

Festo

proximity sensor SIES-8M-NO-24V-K-7,5-OE inductive, with cable, can be flush-mounted, N/C function Design: for T-slot, Conforms to standard: EN 60947-5-2, Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): to EU

1 in stock
551377 on Powermatic Associates

551377

Festo

proximity sensor SMT-10M-NS-24V-E-2,5-L-OE Magnetic, contactless, for C-slot. Design: for round slot, Conforms to standard: EN 60947-5-2, Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): (* to EU directive for

8 in stock
526622 on Powermatic Associates

526622

Festo

proximity sensor SME-8-SL-LED-24 Electric, with reed contact, for drives with T-slot, with M8 plug. Design: for T-slot, Conforms to standard: EN 60947-5-2, Authorisation: RCM Mark, CE mark (see declaration of conformity): to EU directive for EMC, Material

12 in stock
175404 on Powermatic Associates

175404

Festo

proximity sensor SME-8-K5-LED-24 Electric, with reed contact, for drives with T-slot, with cable. Design: for T-slot, Conforms to standard: EN 60947-5-2, Authorisation: RCM Mark, CE mark (see declaration of conformity): to EU directive for EMC, Materials

1 in stock
150847 on Powermatic Associates

150847

Festo

proximity sensor SMEO-1-S-24-B With reed switch, without mounting kit. Design: Block design, Materials note: Free of copper and PTFE, Measuring principle: Reed magnetic, Ambient temperature: -20 - 70 °C, Switch output: with contact, bipolar

1 in stock

Manufacturer warranty

152837 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 152837 with other Proximity Sensors products

Symbol

CE marking (see declarati...

Measuring principle

Switching output

Max. output current

Voltage drop

Short-circuit protection

Overload protection

Material of cable sheath

Product weight

Selected product

152837
Backordered
152837
Festo

proximity sensor SMTO-4U-NS-K-LED-24 With light emitting diode and integrated protective circuit, wi...

Symbol00991149

CE marking (see declaration of conformity)As per EU EMC directive

Measuring principleMagneto-inductive

Switching outputNPN

Max. output current200 mA

Voltage drop2 V

Short-circuit protectionPulsed

Overload protectionAvailable

Material of cable sheathPVC

Product weight70 g

151683
2 in stock
151683
Festo

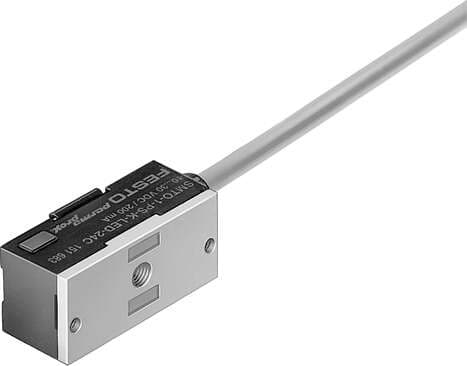

proximity sensor SMTO-1-PS-K-LED-24-C With light emitting diode and integrated protective circuit, w...

Symbol00991152

CE marking (see declaration of conformity)As per EU EMC directive

Measuring principleMagneto-inductive

Switching outputPNP

Max. output current-

Voltage drop-

Short-circuit protection-

Overload protection-

Material of cable sheath-

Product weight-

191986
2 in stock
191986
Festo

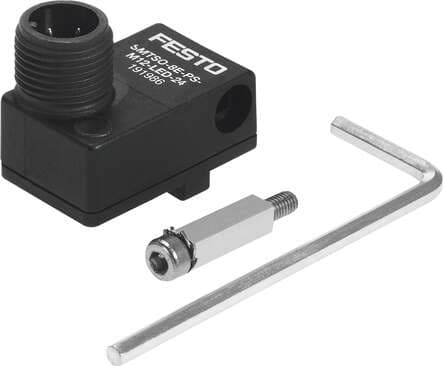

proximity sensor SMTSO-8E-PS-M12-LED-24 Electric, contactless, PNP, for drives with T-slot, without ...
