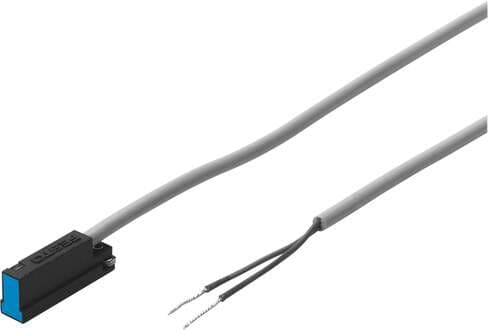

152820 Festo Proximity Sensors

Product Details

• Electrical connection 1, connection technology
  Open end
• Conforms to standard
  EN 60947-5-2
• Type code
  SME
• Design
  for T-slot
• Ambient temperature
  -30 °C ... 60 °C
• Reproducibility of switching value
  +/- 0.1 mm
• Max. switching frequency
  500 Hz
• Voltage drop
  ≤ 3.9 V
• Short-circuit protection
  no
• Material of cable sheath
  TPE-U(PUR)
• Housing material
  Epoxy resin High-alloy stainless steel
• Contamination level
  3
• Electrical connection 1, number of pins/wires
  2
• CE marking (see declaration of conformity)
  As per EU EMC directive As per EU low voltage directive
• On time
  2 ms
• Overload protection
  Not available
• Tightening torque
  0.2 Nm
• Degree of protection
  IP68
• Electrical connection 1, connection type
  Cable
• Symbol
  00991624
Switching output
Contact-based, bipolar
Min. switching capacity AC
10 VA
DC operating voltage range
3 V ... 230 V
Connection outlet orientation
Longitudinal
Ambient temperature with flexible cable installation
-5 °C ... 60 °C
Note on materials
Free of copper and PTFE RoHS-compliant
Certification
CCC RCM compliance mark
Max. output current
120 mA
Residual current
0 mA
Operating voltage range AC
3 V ... 230 V
Type of mounting
Clamped in T slot Can be inserted in slot lengthwise
Switching status indication
LED yellow
Measuring principle
Magnetic reed
Switching element function
N/O contact
Switch-off time
0.03 ms
Max. switching capacity DC
10 W
Reverse polarity protection
no
Cable length
2.5 m
Product weight
39 g
Surge resistance
4 kV
