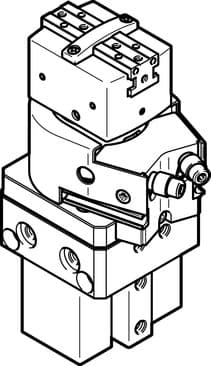

1187955 Festo Grippers

Product Details

• Size
  12
• Max. gripper jaw backlash Sz
  0.02 mm
• Quarter turn actuator cushioning
  Elastic cushioning rings/pads at both ends
• Mode of operation
  Double-acting
• Symbol
  00991893
• Min. opening time at 6 bar
  40 ms
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Maximum force on gripper jaw Fz, static
  90 N
• Product weight
  505 g
• Pneumatic connection
  M5
• Mounting position
  Any
• Number of gripper jaws
  2
• Position sensing, pneumatic gripper
  With proximity sensor
• Min. closing time at 6 bar
  60 ms
• Total gripping force at 6 bar, closing
  74 N
• Maximum torque on gripper jaw, Mz static
  6 Nm
• Stroke per gripper jaw
  2.5 mm
• Max. gripper jaw angular play ax, ay
  0.1 deg
• Type code
  HGDS
Adjustment range of swivel angle
0 deg ... 210 deg
Swivel angle
210 deg
Gripper function
Parallel
Max. swivel frequency at 6 bar
2 Hz
Ambient temperature
5 °C ... 60 °C
Quarter turn actuator fine tuning
-6 deg
Design
Quarter turn actuator with parallel gripper and gripper actuator
Operating pressure
3 bar ... 8 bar
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Gripping force per gripper jaw at 6 bar, opening
42 N
Maximum torque on gripper jaw, Mx static
6 Nm
Type of mounting
Optionally: With dovetail slot
Note on materials
RoHS-compliant
Quarter turn actuator position sensing
With proximity sensor
Total gripping force at 6 bar, opening
84 N
Maximum torque on gripper jaw, My static
6 Nm
Cover material
Aluminum POM
Gripping force per gripper jaw at 6 bar, closing
37 N
Theoretical torque at 6 bar
0.85 Nm
Max. mass per external gripper finger
30 g
Seals material
NBR
Gripper jaw material
High-alloy stainless steel
Drive shaft material
Steel
Housing material
Wrought aluminum alloy
