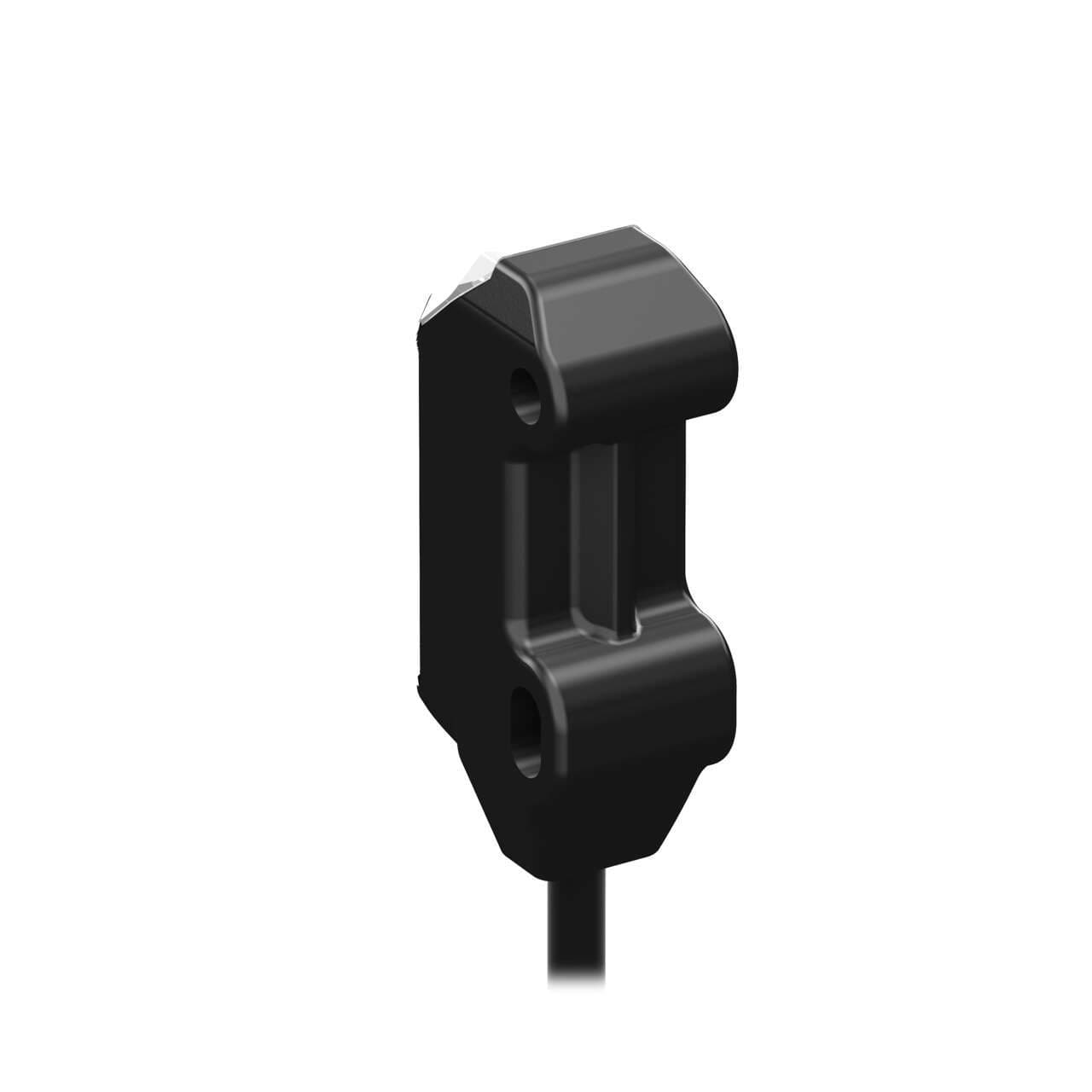

VS1AN5CV10Q Banner Proximity Sensors

Name: VS1AN5CV10Q
Brand: Banner
Price: 131 USD
Availability: BackOrder

Part#:VS1AN5CV10Q

Alt. Part#:63083

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

VS1 Series: Convergent; Focal Point: 10 mm; Input: 12-24 V dc; Output: Light Operate - NPN; 150 mm (6 in) M8 Pigtail QD

Product Details

Weight
36.28736 g
Country Of Origin
MX
IO Link
No
Feature: Hazardous Area
No
Feature: Timing (Hold/Delay)
No
DeviceNet
No
Feature: Chemical Resistant
No
Feature: Encapsulated
No
Opposed Mode Emitter/Receiver
N/A
Feature: Audible
No
Indicator
LEDs
Barrel Diameter (mm)
N/A
Adjustments
N/A
Repeatability (µs)
250
NEMA Rating
NEMA 3
IP Rating
IP54
Lens Material
Acrylic
Max Op. Relative Humidity [%]
80% @ 50°C
Number of Pins
3
Special Feature: Water Detection
No

Delay at Power-up (ms)

N/A

Sensing Beam Wavelength

630

Special Feature: Remote Teach

Special Feature: Intrinsically Safe

Connection

Pigtail QD

Quick Disconnect Type

M8 (Pico)

Max Op. Temp. (°C)

Output response time (ms)

Operation

Light Operate

Power Supply/Supply Voltage

10-30 V dc

Min Op. Temp. (°C)

-20

Outputs

NPN

Sensing Mode (Detailed)

Convergent

Power

Sensing Mode (General)

Proximity

Input/Output

Discrete

Housing Style

Rectangular

Primary Housing Material

Thermoplastic

Max Sensing Distance (mm)

Sensing Beam

Visible Red LED

Connection type

Pre-wired with 6" / 150mm pigtail terminated with 3-pin Pico-style M8 connector

Compliant with standard(s)

Primary brand

Banner Engineering

Functions

Photo-electric sensor green LED (power ON) amber LED (light sensed)

Shape

Rectangular

Response time

1ms / 0.001 s

Ambient air temperature for operation

-20...+55 °C

Main function

Sensor (Photo-electric)

Operating mode

Light-ON NO (Normally Open)

Sub-range name

VS1 series

Design

convergent mode

Wavelength

630 nm

Digital outputs

1 x digital output (NPN transistor)

Material

thermoplastic housing Acrylic lns.

Order code / Manufacturer SKU

63083

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Sensing distance

10mm

Light Color

Visible red

Degree of protection

IP54 NEMA 3

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VS1AN5CV10Q on Powermatic Associates is $131.00. Order now.

About the product

Banner Engineering VS1AN5CV10Q is a photo-electric sensor with a thermoplastic housing and an acrylic lens. It features an IP54 and NEMA 3 degree of protection, making it suitable for operation in ambient air temperatures ranging from -20 to +55 °C. This sensor operates in a Light-ON NO (Normally Open) mode and includes 1 x digital output (NPN transistor) with a response time of 1ms / 0.001 s. It comes pre-wired with a 6" / 150mm pigtail terminated with a 3-pin Pico-style M8 connector. The rectangular-shaped sensor emits a visible red light at a wavelength of 630 nm and operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.). Designed in convergent mode, it has a sensing distance of 10mm. This part belongs to the VS1 series.
