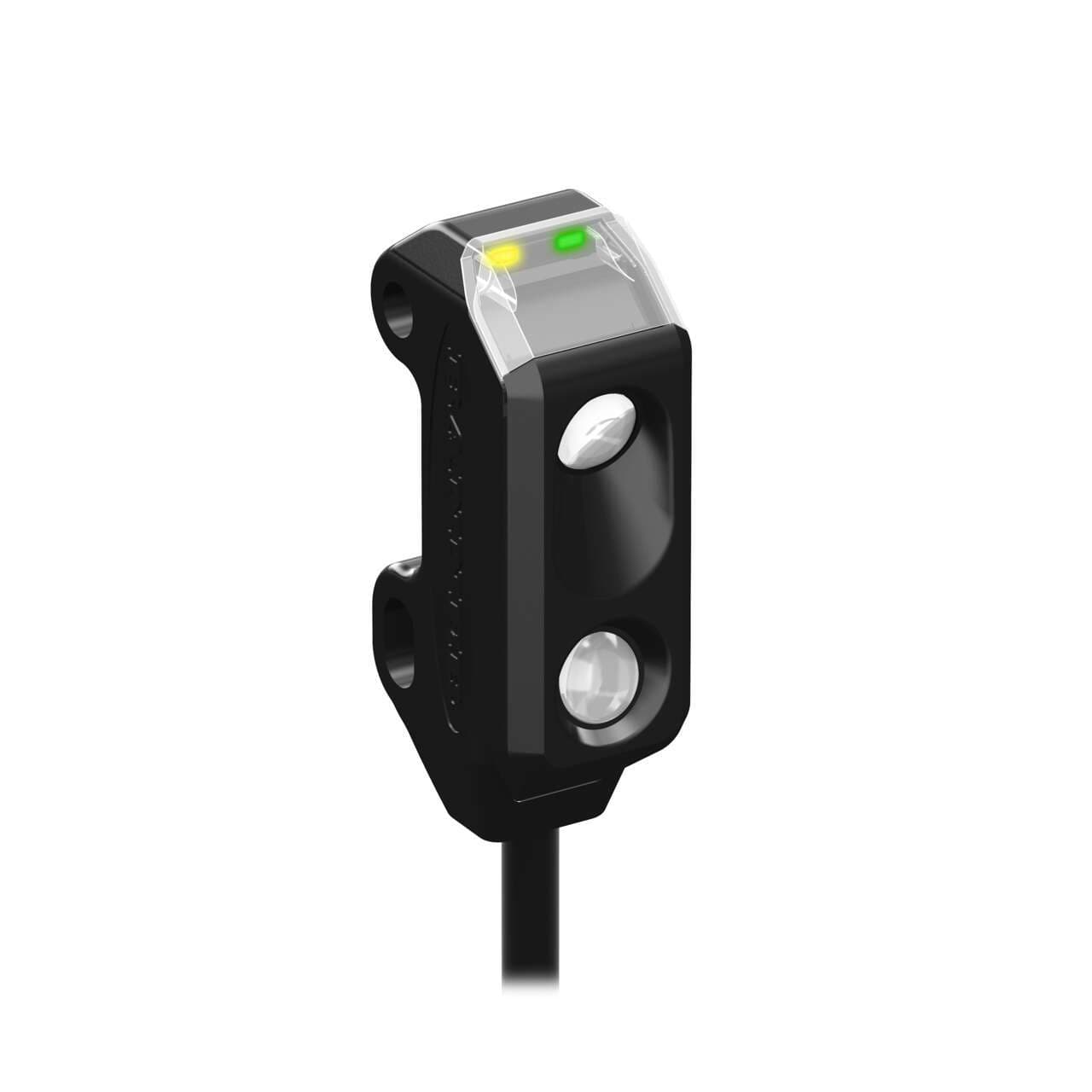

VS1AN5C20 Banner Proximity Sensors

Name: VS1AN5C20
Brand: Banner
Price: 111 USD
Availability: BackOrder

Part#:VS1AN5C20

Alt. Part#:55297

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

VS1 Series: Infrared Convergent; Focal Point: 20 mm; Input: 12-24 V dc; Output: Complementary NPN Light Operate; 2 m (6.5 ft) Cable

Product Details

Weight
45.5406368 g
Country Of Origin
MX
Feature: Audible
No
IO Link
No
Feature: Chemical Resistant
No
DeviceNet
No
Feature: Timing (Hold/Delay)
No
Opposed Mode Emitter/Receiver
N/A
Feature: Hazardous Area
No
Feature: Encapsulated
No
Indicator
LEDs
Barrel Diameter (mm)
N/A
Adjustments
N/A
Lens Material
Acrylic
Number of Pins
3
Max Op. Relative Humidity [%]
80% @ 50°C
NEMA Rating
NEMA 3
Delay at Power-up (ms)
N/A
Sensing Beam Wavelength
865
Special Feature: Water Detection
No

Special Feature: Remote Teach

IP Rating

IP54

Repeatability (µs)

250

Operation

Light Operate

Output response time (ms)

Max Op. Temp. (°C)

Min Op. Temp. (°C)

-20

Special Feature: Intrinsically Safe

Outputs

NPN

Connection

Cable

Quick Disconnect Type

No QD

Power Supply/Supply Voltage

10-30 V dc

Primary Housing Material

Thermoplastic

Max Sensing Distance (mm)

Cable Length (m)

Input/Output

Discrete

Housing Style

Rectangular

Sensing Mode (Detailed)

Convergent

Power

Sensing Mode (General)

Proximity

Sensing Beam

Infrared LED

Main function

Sensor (Photo-electric)

Functions

Photo-electric sensor green LED (power ON) amber LED (light sensed)

Shape

Rectangular

Sub-range name

VS1 series

Operating mode

Light-ON NO (Normally Open)

Degree of protection

IP54 NEMA 3

Primary brand

Banner Engineering

Design

convergent mode

Wavelength

865 nm

Material

thermoplastic housing Acrylic lns.

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Light Color

Infrared (IR)

Response time

1ms / 0.001 s

Ambient air temperature for operation

-20...+55 °C

Sensing distance

20mm

Connection type

Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads

Compliant with standard(s)

Digital outputs

1 x digital output (NPN transistor)

Order code / Manufacturer SKU

55297

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of VS1AN5C20 on Powermatic Associates is $111.00. Order now.

About the product

Banner Engineering VS1AN5C20 is a photo-electric sensor with a thermoplastic housing and an acrylic lens. It offers a degree of protection rated at IP54 and NEMA 3, suitable for operation in ambient air temperatures ranging from -20 to +55°C. This sensor operates in a Light-ON NO (Normally Open) mode and features 1 x digital output utilizing an NPN transistor. It boasts a rapid response time of 1ms / 0.001 s. The VS1AN5C20 is designed with a pre-wired connection, including a 6.5ft / 2m cable terminated with bare end flying leads. Its rectangular shape and convergent mode design are optimized for a sensing distance of 20mm. The sensor operates with a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and emits an infrared (IR) light at a wavelength of 865 nm. It is part of the VS1 series.
