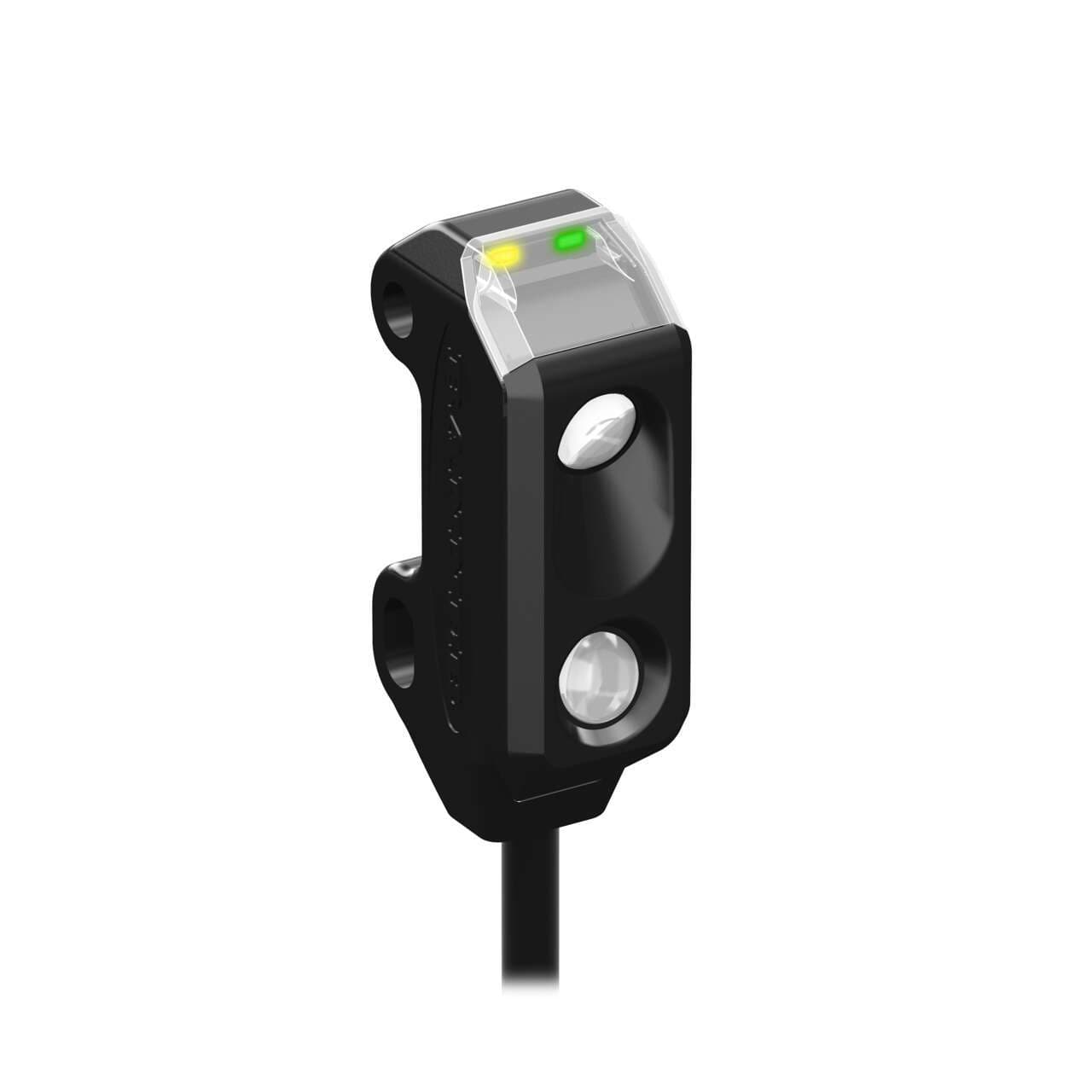

VS1AN5CV20Q Banner Proximity Sensors

Product Details

• Weight
  36.28736 g
• Country Of Origin
  MX
• Feature: Chemical Resistant
  No
• Feature: Audible
  No
• IO Link
  No
• DeviceNet
  No
• Feature: Hazardous Area
  No
• Feature: Timing (Hold/Delay)
  No
• Feature: Encapsulated
  No
• Opposed Mode Emitter/Receiver
  N/A
• Barrel Diameter (mm)
  N/A
• Indicator
  LEDs
• Adjustments
  N/A
• Lens Material
  Acrylic
• Max Op. Relative Humidity [%]
  80% @ 50°C
• NEMA Rating
  NEMA 3
• IP Rating
  IP54
• Number of Pins
  3
• Repeatability (µs)
  250
• Delay at Power-up (ms)
  N/A
Sensing Beam Wavelength
630
Special Feature: Water Detection
No
Special Feature: Remote Teach
No
Output response time (ms)
1
Special Feature: Intrinsically Safe
No
Max Op. Temp. (°C)
55
Operation
Light Operate
Min Op. Temp. (°C)
-20
Quick Disconnect Type
M8 (Pico)
Connection
Pigtail QD
Power Supply/Supply Voltage
10-30 V dc
Max Sensing Distance (mm)
20
Power
DC
Outputs
NPN
Input/Output
Discrete
Primary Housing Material
Thermoplastic
Sensing Beam
Visible Red LED
Housing Style
Rectangular
Sensing Mode (Detailed)
Convergent
Sensing Mode (General)
Proximity
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Shape
Rectangular
Degree of protection
IP54 NEMA 3
Primary brand
Banner Engineering
Sensing distance
20mm
Connection type
Pre-wired with 6" / 150mm pigtail terminated with 3-pin Pico-style M8 connector
Compliant with standard(s)
CE
Sub-range name
VS1 series
Light Color
Visible red
Digital outputs
1 x digital output (NPN transistor)
Ambient air temperature for operation
-20...+55 °C
Main function
Sensor (Photo-electric)
Design
convergent mode
Operating mode
Light-ON NO (Normally Open)
Material
thermoplastic housing Acrylic lns.
Functions
Photo-electric sensor green LED (power ON) amber LED (light sensed)
Wavelength
630 nm
Response time
1ms / 0.001 s
Order code / Manufacturer SKU
63090
