TM18VN6LPQ5 Banner Electronic Components

Name: TM18VN6LPQ5
Brand: Banner

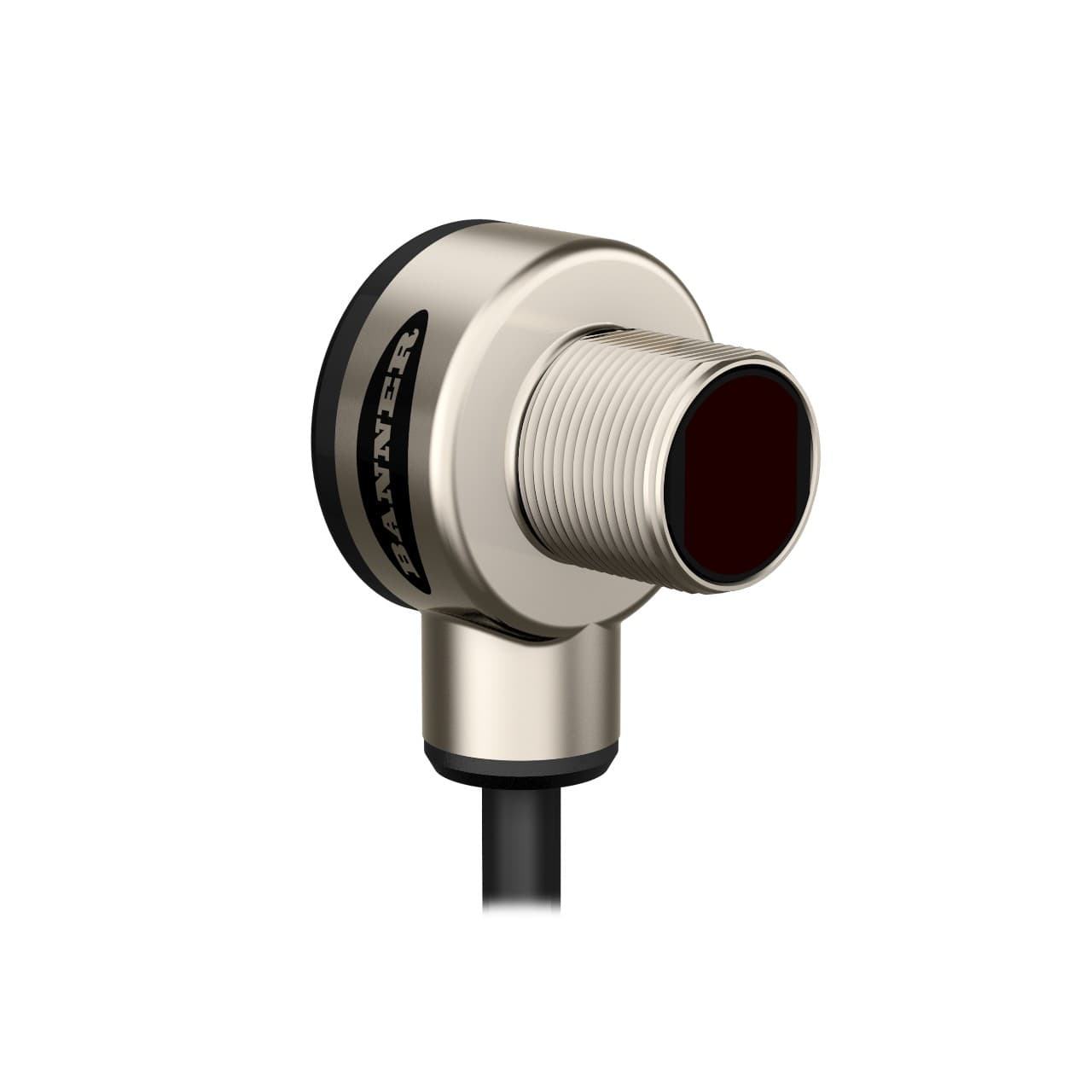

Banner TM18VN6LPQ5 Banner Engineering TM18VN6LPQ5 is a polarized photo-electric sensor from the TM18 series, designed in a retro-reflective mode for heavy-duty applications. It features a nickel-plated die-cast zinc housing with an acrylic lens. This sensor is pre-wired with a 6" / 150mm pigtail that terminates with a 4-pin Euro-style M12 connector. It operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc. The TM18VN6LPQ5 offers a threaded mount for installation, and it can operate within an ambient air temperature range of -40 to +70°C. It boasts a degree of protection rated at IP67, IP69K, and NEMA 6, ensuring durability in various environmental conditions. The sensor has an M18 cylindrical threaded/barrel shape, includes 1 x digital output (NPN transistor), and provides a sensing distance of up to 5.5m. It emits visible red light and has a response time of 3ms / 0.003 s. Additionally, it supports both Light-ON and Dark-ON operating modes, with a thread size of M18.

Part#:TM18VN6LPQ5

Manufacturer:Banner

Product Lifecycle:Active

Get a quick Quote!

Banner Engineering TM18VN6LPQ5 is a polarized photo-electric sensor from the TM18 series, designed in a retro-reflective mode for heavy-duty applications. It features a nickel-plated die-cast zinc housing with an acrylic lens. This sensor is pre-wired with a 6" / 150mm pigtail that terminates with a 4-pin Euro-style M12 connector. It operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc. The TM18VN6LPQ5 offers a threaded mount for installation, and it can operate within an ambient air temperature range of -40 to +70°C. It boasts a degree of protection rated at IP67, IP69K, and NEMA 6, ensuring durability in various environmental conditions. The sensor has an M18 cylindrical threaded/barrel shape, includes 1 x digital output (NPN transistor), and provides a sensing distance of up to 5.5m. It emits visible red light and has a response time of 3ms / 0.003 s. Additionally, it supports both Light-ON and Dark-ON operating modes, with a thread size of M18.

About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the TM18VN6LPQ5 Banner price in the box on the right side or send a quick quote.

Product Details

IO Link
No
Feature: Chemical Resistant
No
Feature: Timing (Hold/Delay)
No
Feature: Audible
No
DeviceNet
No
Feature: Hazardous Area
No
Feature: Encapsulated
Yes
Feature: Washdown Rated
Yes
Opposed Mode Emitter/Receiver
N/A
Indicator
LEDs
Barrel Diameter (mm)
18
Lens Material
Acrylic
Adjustments
N/A
Max Op. Relative Humidity [%]
90% @ 50°C
NEMA Rating
NEMA 6
IP Rating
IP67, IP69
Delay at Power-up (ms)
100
Number of Pins
4
Repeatability (µs)
585
Special Feature: Remote Teach
No

Special Feature: Intrinsically Safe

Min Op. Temp. (°C)

-40

Connection

Pigtail QD

Output response time (ms)

Operation

Light/Dark Operate

Max Op. Temp. (°C)

Special Feature: Water Detection

Quick Disconnect Type

M12 (Euro)

Power Supply/Supply Voltage

10-30 V dc

Max Sensing Distance (mm)

5500

Power

Input/Output

Discrete

Sensing Mode (Detailed)

Polarized

Sensing Mode (General)

Retroreflective

Sensing Beam

Visible Red LED

Primary Housing Material

Zinc Die-Cast with Nickel-Plating

Outputs

NPN

Housing Style

Barrel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
